Product Description

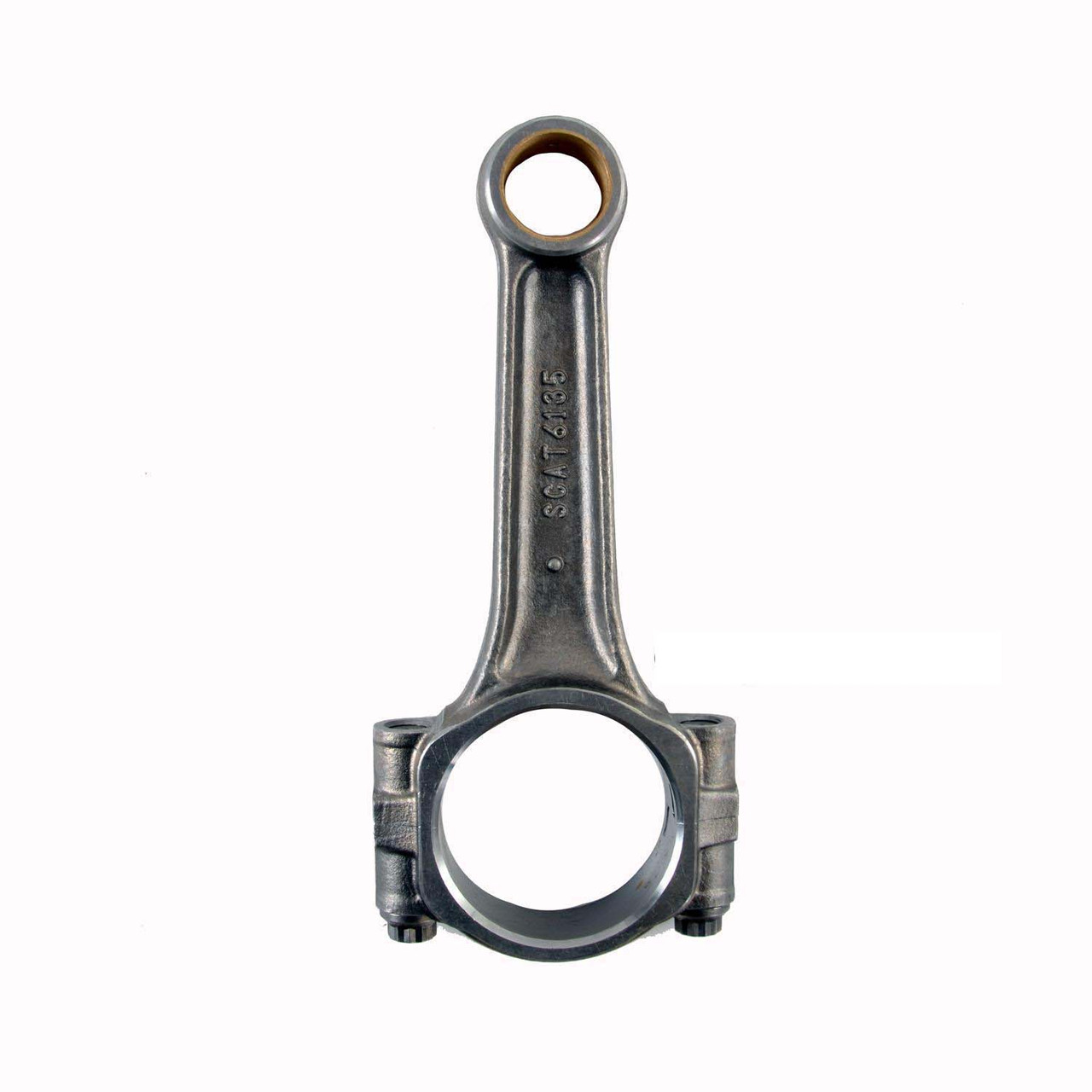

Connecting Rod - HP - 26135
| Details | Value |
|---|---|
| Part number | 26135 |
| Sizes available | N/A |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 3.75x9.25x13.75" |
| Weight | 11.5 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| Scat Cranks | 2-ICR6135 |
Product notes
Enginetech Rod & Main Bearings
Enginetech main & rod bearings - the choice of rebuilders for over 25 years.
About ten years ago, when aluminum bearings were first being introduced, Enginetech continued to produce the higher quality tri-metal 780 bearings. Enginetech stuck firm with the 780 tri-metal material for years because it was far superior to the early aluminum bearing technology.
Advanced technology in the last few years has produced huge improvements in aluminum bearings. The additions of high amounts of silicon dispersed within aluminum alloys have moved aluminum-silicone bearing material to the preferred bearing status. The performance of new aluminum-silicone alloys is now equal to or better than the original tri-metal designs. Due to the new advances in aluminum-silicon bearing technology Enginetech is converting most of our main & rod bearings to the advanced aluminum-silicon material.
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| HIGH PERFORMANCE | GM | 7.4L / 454 OHV V8 16V Chev. Mark IV Big Block 4.250" Bore 70-90 | 70-90 | New Scat HP rods. 4340 forged. I-Beam. ARP 8740 7/16" x 1.600" bolts. Bushed. Length 6.135". Journal Dia. 2.200". Pin Dia. 0.990". Big end width 0.992". (8 pack). | |
| HIGH PERFORMANCE | GM | 7.4L / 454 OHV V8 16V Chev. Mark V Big Block 4.250" Bore 91-97 | 91-97 | New Scat HP rods. 4340 forged. I-Beam. ARP 8740 7/16" x 1.600" bolts. Bushed. Length 6.135". Journal Dia. 2.200". Pin Dia. 0.990". Big end width 0.992". (8 pack). | |
| HIGH PERFORMANCE | GM | 7.4L / 454 OHV V8 16V Chev. Mark VI Big Block 4.250" Bore 96-00 | 96-00 | New Scat HP rods. 4340 forged. I-Beam. ARP 8740 7/16" x 1.600" bolts. Bushed. Length 6.135". Journal Dia. 2.200". Pin Dia. 0.990". Big end width 0.992". (8 pack). | |
| HIGH PERFORMANCE | GM | 8.1L / 496 OHV V8 16V Chev. Mark IV Big Block Stroker 4.250" Bore 70-90 | 70-90 | New Scat HP rods. 4340 forged. I-Beam. ARP 8740 7/16" x 1.600" bolts. Bushed. Length 6.135". Journal Dia. 2.200". Pin Dia. 0.990". Big end width 0.992". (8 pack). | |
| HIGH PERFORMANCE | GM | 8.1L / 496 OHV V8 16V Chev. Mark V Big Block Stroker 4.250" Bore 91-97 | 91-97 | New Scat HP rods. 4340 forged. I-Beam. ARP 8740 7/16" x 1.600" bolts. Bushed. Length 6.135". Journal Dia. 2.200". Pin Dia. 0.990". Big end width 0.992". (8 pack). |
