Product Description

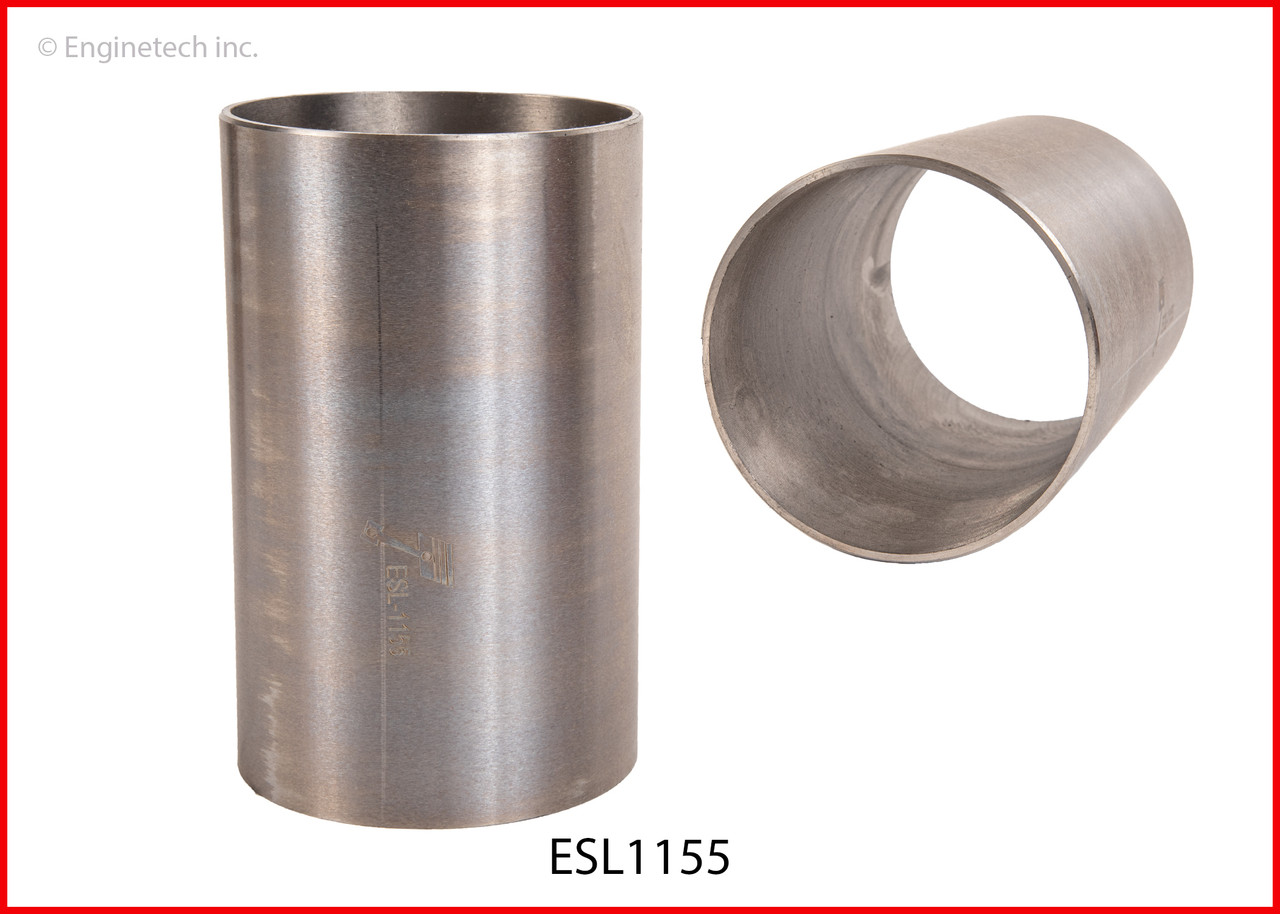

Cylinder Sleeve - ESL1155
| Details | Value |
|---|---|
| Part number | ESL1155 |
| Sizes available | N/A |
Dimensions
| Attribute | Value |
|---|---|
| Wall Thickness | 3/32 |
| Sleeve Length | 6.875 |
| Bore Inch | 4.082 |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 8x4.5x4.5" |
| Weight | 2.75 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| Melling | CSL1155 |
Product notes
Enginetech Cylinder Sleeves
The complete line of Enginetech Cylinder Repair Sleeves is available for all popular sizes and assorted lengths.
Every Enginetech cylinder sleeve is carefully cast using the centrifugal casting method. Centrifugal casting assures that every sleeve is produced with a homogenous material resulting in a high quality product every time.
Enginetech repair sleeves are designed and produced with a semi-finished ID that allows the machinist to remove at least 0.025 of material during the boring and honing process.
Each repair sleeve is chamfered at the bottom OD edge for ease of installation into the engine block.
Enginetech also offers popular High Performance cylinder sleeves. Our HP sleeves are centrifugally cast from a premium formula that yields higher hardness (293 BHN) and higher tensile strength (45000 PSI).
Each Enginetech cylinder sleeve is individually packaged in its own protective box and is wrapped in rust preventative paper for improved shelf life.
For cylinder sleeves that meet Enginetech's high standard of quality and value, along with excellent service and technical support, you need Enginetech
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| Car | AMC | 5.6L / 343 OHV V8 16V AMC 4.080" Bore 67-69 | 67-69 | 3/32" X 3.400" X 7.063" | |
| Car | AMC | 5.9L / 360 OHV V8 16V AMC 4.080" Bore 70-78 | 70-78 | 3/32" X 3.400" X 7.063" | |
| TRUCK, VAN, SUV | Jeep | 5.9L / 360 OHV V8 16V AMC 4.080" Bore 70-91 | 70-91 | 3/32" X 3.400" X 7.063" |
