Product Description

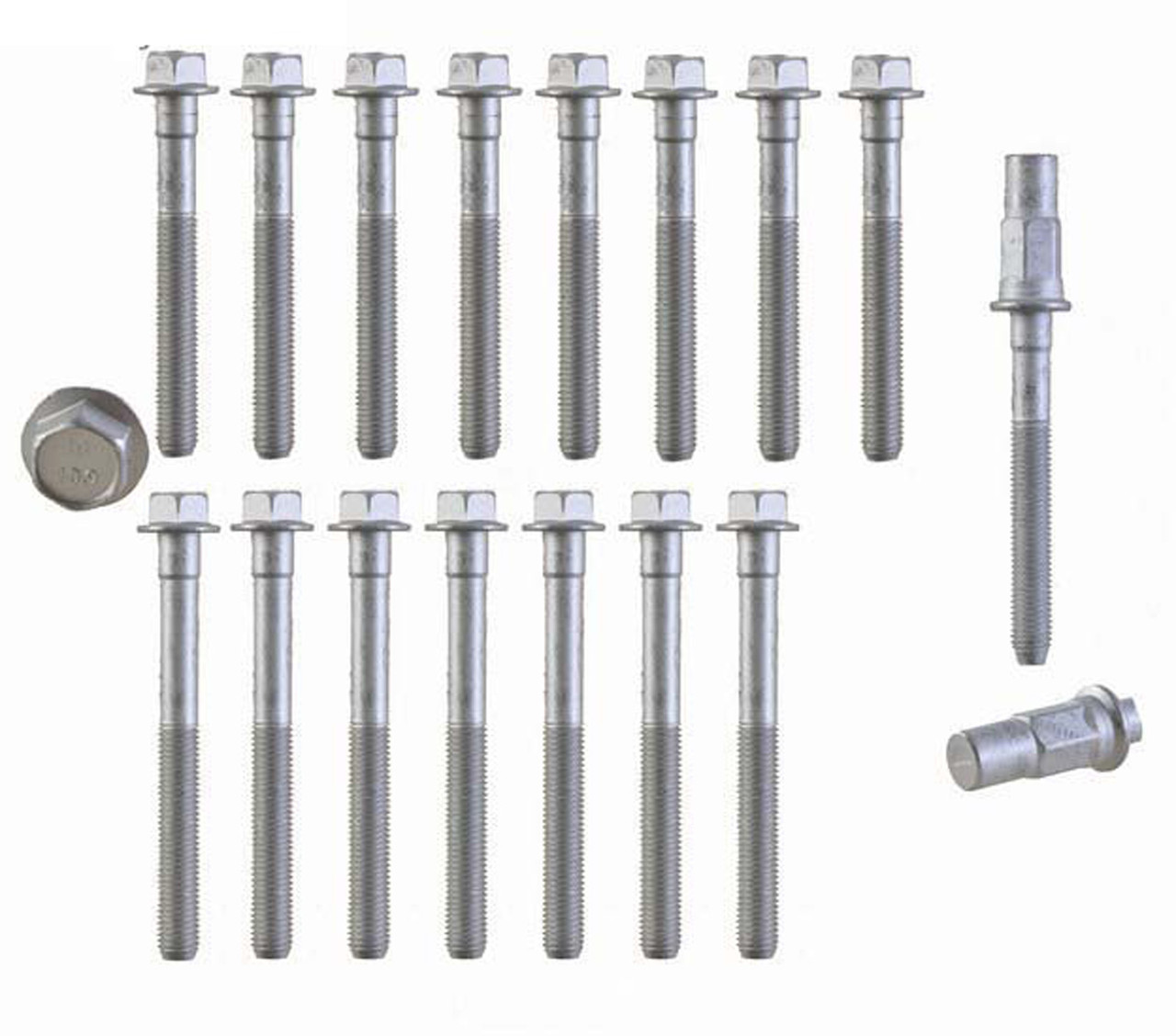

Head Bolt Set - GM Chevrolet 3.1L 189 3.4 207 1 Set Req See Catalog - Enginetech HB167
Head Bolt Set - HB167
| Details | Value |
|---|---|
| Part number | HB167 |
| Sizes available | N/A |
Dimensions
| Attribute | Value |
|---|---|
| Size | 11mm X 1.50 X 91mm w/stud post |
| Qty | 1 |
| Pitch1 | 1.50 |
| Pitch2 | |
| Pitch3 | |
| Diameter1 | 11mm |
| Diameter2 | |
| Diameter3 | |
| Length1 | 91mm w/stud post |
| Length2 | |
| Length3 | |
| Sort1 | |
| Sort2 | |
| Sort3 |
| Attribute | Value |
|---|---|
| Size | 11mm X 1.50 X 108mm |
| Qty | 8 |
| Pitch1 | 1.50 |
| Pitch2 | |
| Pitch3 | |
| Diameter1 | 11mm |
| Diameter2 | |
| Diameter3 | |
| Length1 | 108mm |
| Length2 | |
| Length3 | |
| Sort1 | |
| Sort2 | |
| Sort3 |
| Attribute | Value |
|---|---|
| Size | 11mm X 1.50 X 91mm |
| Qty | 7 |
| Pitch1 | 1.50 |
| Pitch2 | |
| Pitch3 | |
| Diameter1 | 11mm |
| Diameter2 | |
| Diameter3 | |
| Length1 | 91mm |
| Length2 | |
| Length3 | |
| Sort1 | |
| Sort2 | |
| Sort3 |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 2x5.5x10.75" |
| Weight | 3.25 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| FEL-PRO | ES72892 |
| MAHLE | GS33377 |
| SB International | 220-1031 |
| Victor Reinz | GS33377 |
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| Car | GM | 3.1L / 189 OHV V6 12V "J,M,T,W" Chev. 89.00mm Bore 88-05 | 96-98 | "M". Century, Cutlass, Grand Prix, Lumina, Monte Carlo & Regal. One set required. | |
| Car | GM | 3.1L / 189 OHV V6 12V "J,M,T,W" Chev. 89.00mm Bore 88-05 | 99-99 | "M". Ex. Malibu. One set required. | |
| Car | GM | 3.1L / 189 OHV V6 12V "J,M,T,W" Chev. 89.00mm Bore 88-05 | 00-05 | "J". Ex. Malibu. One set required. | |
| Car | GM | 3.4L / 207 OHV V6 12V "E,S" Chev. 92.00mm Bore 93-05 | 00-05 | Impala & Monte Carlo. One set required. The single 1.5 x 91 bolt has unthread extended length cap. | |
| TRUCK, VAN, SUV | GM, CHEVROLET | 3.4L / 207 OHV V6 12V "E,F" Chev. 92.00mm Bore 96-09 | 96-09 | One set required. |
