Product Description

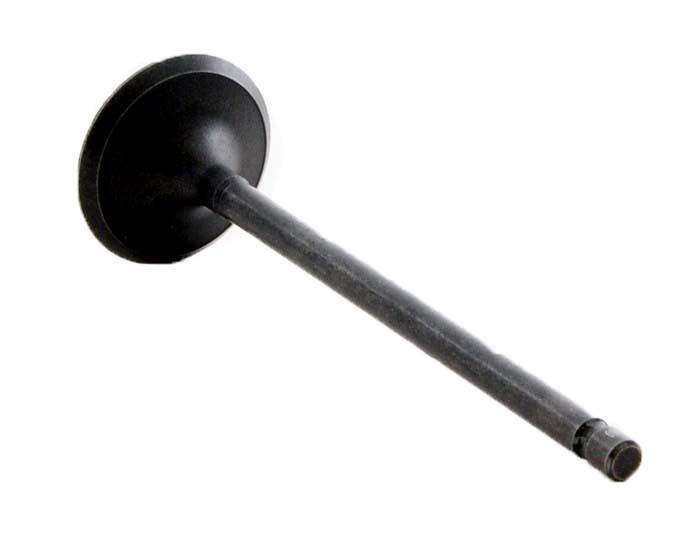

Intake Valve - Chrysler Mit 4G64 6G72 6G74 G64B 6G73 - Enginetech IM2860
Valve - Intake - IM2860
| Details | Value |
|---|---|
| Part number | IM2860 |
| Sizes available | N/A |
Dimensions
| Attribute | Value |
|---|---|
| AttributeData | 0.2349 |
| CatalogColumn | ET Stem Diameter |
| Attribute | Value |
|---|---|
| AttributeData | 1 |
| CatalogColumn | Number of Grooves |
| Attribute | Value |
|---|---|
| AttributeData | 1.293 |
| CatalogColumn | ET Head Diameter |
| Attribute | Value |
|---|---|
| AttributeData | 1.293 |
| CatalogColumn | Standard Head Diameter |
| Attribute | Value |
|---|---|
| AttributeData | 4.425 |
| CatalogColumn | Valve Length |
| Attribute | Value |
|---|---|
| AttributeData | 6.00 |
| CatalogColumn | Nominal Stem Diameter |
| Attribute | Value |
|---|---|
| AttributeData | N/R |
| CatalogColumn | Reamer |
| Attribute | Value |
|---|---|
| AttributeData | Nitrided Stem |
| CatalogColumn | Notes |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 2x2x6" |
| Weight | 0.25 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| DNJ | IV135 |
| FEL-PRO | V-4511 |
| ITM | RV9550 |
| MAHLE | 211-4014 |
| Manley | S2860 |
| Qualcast | 10-10534 |
| SB International | 10534 |
| Topline | IVMI24 |
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| Car | AMC | 2.4L / 144 SOHC L4 16V "G" Mits. 86.50mm Bore 93-05 | 93-05 | .2349" stem. 1.293" head. | |
| Car | CHRYSLER | 2.4L / 144 SOHC L4 16V "G" Mits. 86.50mm Bore 93-05 | 93-05 | .2349" stem. 1.293" head. | |
| Car | CHRYSLER | 2.5L / 152 SOHC V6 24V Mits. 6G73 83.50mm Bore 95-00 | 95-00 | .2349" stem. 1.293" head. | |
| Car | CHRYSLER | 3.0L / 181 SOHC V6 24V "H" Mits. Nat. Asp. 91.10mm Bore 01-05 | 01-05 | .2349" stem. 1.293" head. | |
| Car | Mitsubishi | 2.4L / 2351 SOHC L4 16V 4G64 86.50mm Bore 93-05 | 93-05 | .2349" stem. 1.293" head. | |
| Car | Mitsubishi | 2.4L / 2351 DOHC L4 16V 4G64K 86.50mm Bore 94-94 | 94-94 | .2349" stem. 1.293" head. | |
| Car | Mitsubishi | 3.0L / 2972 SOHC V6 24V 6G72 91.10mm Bore 99-05 | 99-05 | .2349" stem. 1.293" head. | |
| Car | Mitsubishi | 3.5L / 3496 SOHC V6 24V 6G74 93.00mm Bore 97-04 | 97-04 | .2349" stem. 1.293" head. | |
| TRUCK, VAN, SUV | Mitsubishi | 2.4L / 2351 SOHC L4 16V 4G64 86.50mm Bore 97-03 | 97-03 | .2349" stem. 1.293" head. | |
| TRUCK, VAN, SUV | Mitsubishi | 3.0L / 2972 SOHC V6 24V 6G72 91.10mm Bore 95-03 | 95-03 | .2349" stem. 1.293" head. | |
| TRUCK, VAN, SUV | Mitsubishi | 3.5L / 3496 SOHC V6 24V 6G74 93.00mm Bore 97-04 | 97-04 | .2349" stem. 1.293" head. |
