Product Description

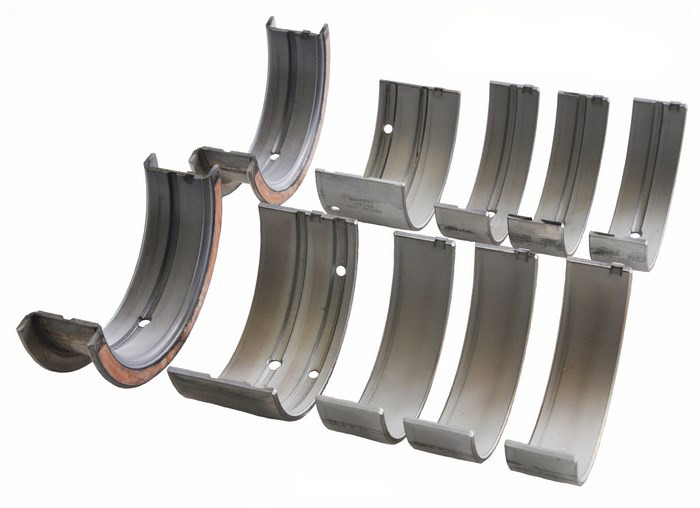

Main Bearing Set - GM Pontiac 421 428 455 - Enginetech BC104J
Bearing Set - Main - BC104J
| Details | Value |
|---|---|
| Part number | BC104J |
| Sizes available | STD, 010, 020 |
Dimensions
| Attribute | Value |
|---|---|
| Shell P/N | MB2215P |
| Position | 1-2-3 |
| Shaft Diameter | 3.2490-3.2500" |
| Housing Bore | 3.4380-3.4390" |
| Wall Thickness | 0.0934-0.0939" |
| Width | 0.943" |
| Oil Clearance | 0.0005-0.0035" |
| Sizes | N/A |
| Attribute | Value |
|---|---|
| Shell P/N | MB2216P(F) |
| Position | 4 |
| Shaft Diameter | 3.2490-3.2500" |
| Housing Bore | 3.4380-3.4390" |
| Wall Thickness | 0.0934-0.0939" |
| Width | 1.195" |
| Oil Clearance | 0.0005-0.0035" |
| Sizes | N/A |
| Attribute | Value |
|---|---|
| Shell P/N | MB2217P |
| Position | 5 |
| Shaft Diameter | 3.2490-3.2500" |
| Housing Bore | 3.4380-3.4390" |
| Wall Thickness | 0.0934-0.0939" |
| Width | 1.595" |
| Oil Clearance | 0.0005-0.0035" |
| Sizes | N/A |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 2x5.5x10.75" |
| Weight | 2 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| ACL | 5M667P |
| FEL-PRO | 4221M |
| MAHLE | MS-667P |
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| Car | GM | 6.9L / 421 OHV V8 16V Pont. 4.094" Bore 63-66 | 63-66 | ||
| Car | GM | 7.0L / 428 OHV V8 16V Pont. 4.120" Bore 67-69 | 67-69 | ||
| Car | GM | 7.5L / 455 OHV V8 16V Pont. 4.150" Bore 70-76 | 70-76 |
