Product Description

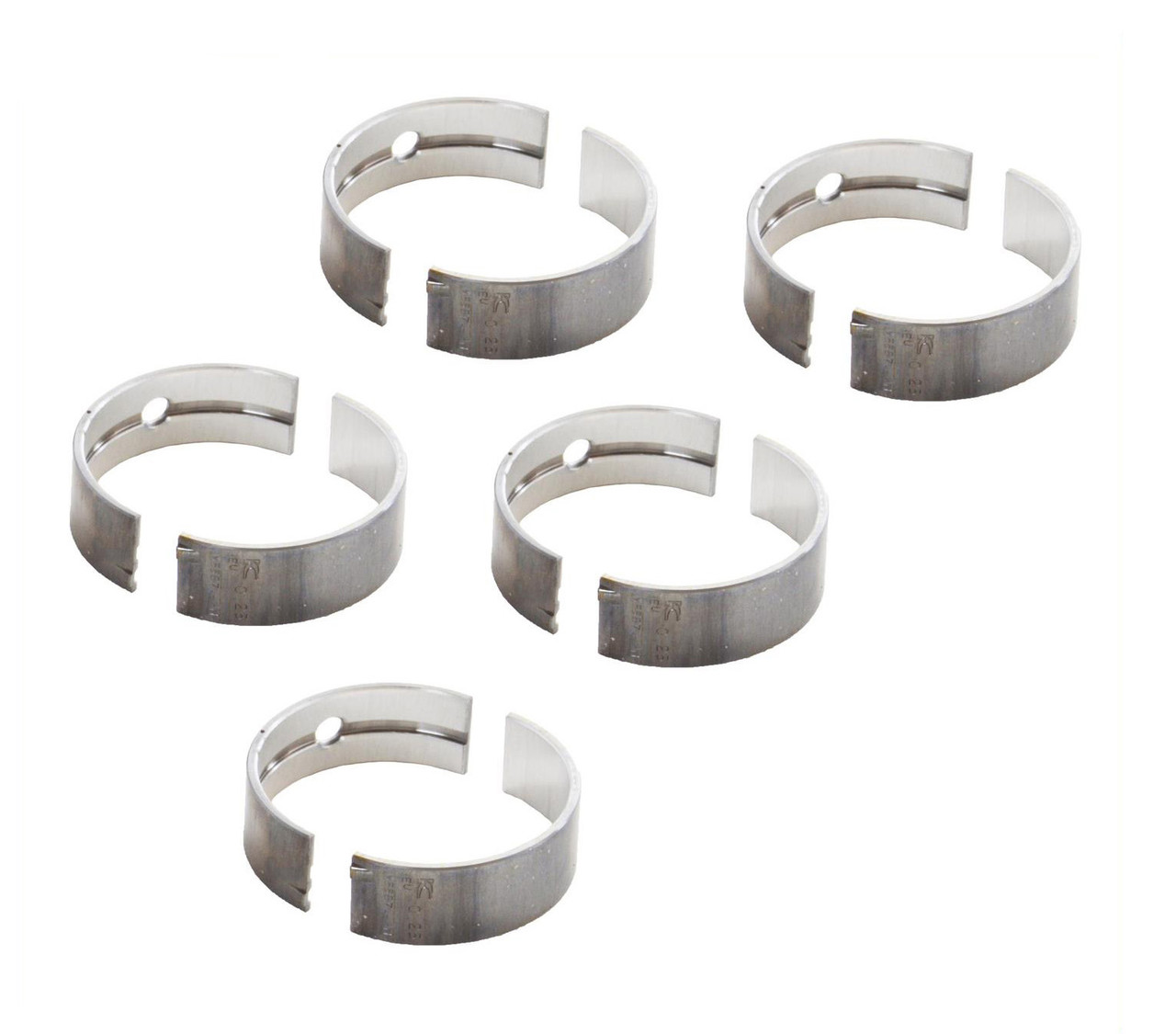

Main Bearing Set - GM Suz 1.6L G16KC G16KV - Enginetech BC8339
Bearing Set - Main - BC8339
| Details | Value |
|---|---|
| Part number | BC8339 |
| Sizes available | STD, .25, .50 |
Dimensions
| Attribute | Value |
|---|---|
| Shell P/N | M5587U |
| Position | 1-2-3-4-5 |
| Shaft Diameter | 2.0465-2.0472" |
| Housing Bore | 2.2047-2.2054" |
| Wall Thickness | 0.0787" |
| Width | 0.7085" |
| Oil Clearance | 0.0004-0.0028" |
| Sizes |
| Attribute | Value |
|---|---|
| Shell P/N | M5587L |
| Position | 1-2-3-4-5 |
| Shaft Diameter | 2.0465-2.0472" |
| Housing Bore | 2.2047-2.2054" |
| Wall Thickness | 0.0787" |
| Width | 0.7085" |
| Oil Clearance | 0.0004-0.0028" |
| Sizes |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 2x4x10" |
| Weight | 0.75 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| ACL | 5M8339 |
| Beck/Arnley | 014-6450 |
| Clevite | MS-1820A |
| DNJ | MB525 |
| FEL-PRO | 7208M |
| ITM | 5M9378 |
| King Engine Bearings | MB5587AM |
| MAHLE | MS-1820AL |
| Safety Auto Parts Corp | BM15-597 |
| Topline | MBSZ4 |
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| Car | Suzuki | 1.6L / 1590 SOHC L4 16V G16 75.00mm Bore 95-01 | 95-01 | ||
| TRUCK, VAN, SUV | GM, CHEVROLET | 1.6L / 1590 SOHC L4 8V "U" Suz. 75.00mm Bore 89-95 | 89-95 | ||
| TRUCK, VAN, SUV | GM, CHEVROLET | 1.6L / 1590 SOHC L4 16V "6" Suz. 75.00mm Bore 94-00 | 94-00 | ||
| TRUCK, VAN, SUV | Suzuki | 1.6L / 1590 SOHC L4 8V G16KC 75.00mm Bore 89-95 | 89-95 | ||
| TRUCK, VAN, SUV | Suzuki | 1.6L / 1590 SOHC L4 16V G16KV,G16B 75.00mm Bore 92-02 | 93-01 |
