Product Description

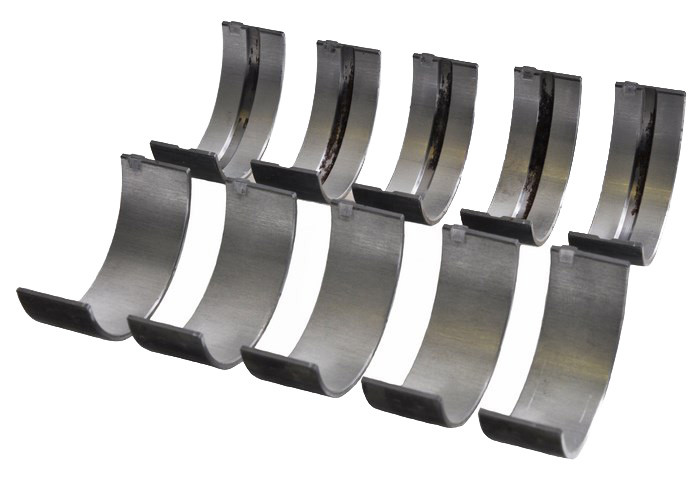

Main Bearing Set - Isuzu Hon 2.6L 4ZE1 - Enginetech BC1627
Bearing Set - Main - BC1627
| Details | Value |
|---|---|
| Part number | BC1627 |
| Sizes available | STD, .25, .25, .50, .50 |
Dimensions
| Attribute | Value |
|---|---|
| Shell P/N | M1-1620 |
| Position | 1-2-3-4-5 |
| Shaft Diameter | 2.2014-2.2020" |
| Housing Bore | 2.3614-2.3622" |
| Wall Thickness | 0.0785-0.0791" |
| Width | 0.861" |
| Oil Clearance | 0.0013-0.0039" |
| Sizes | N/A |
| Attribute | Value |
|---|---|
| Shell P/N | M1-1627-L |
| Position | 1-2-3-4-5 |
| Shaft Diameter | 2.2014-2.2020" |
| Housing Bore | 2.3614-2.3622" |
| Wall Thickness | 0.0785-0.0791" |
| Width | 0.861" |
| Oil Clearance | 0.0013-0.0039" |
| Sizes | N/A |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 2x4x10" |
| Weight | 0.75 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| ACL | 5M1824 |
| Beck/Arnley | 014-6426 |
| Clevite | MS-1821A |
| DNJ | MB605 |
| FEL-PRO | 7320M |
| ITM | 5M9321 |
| King Engine Bearings | MB5586AM |
| MAHLE | MS-1821AL |
| Safety Auto Parts Corp | BM16-523 |
| Topline | MBIS7 |
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| TRUCK, VAN, SUV | Honda | 2.6L / 2559 SOHC L4 8V Isuzu 4ZE1 92.60mm Bore 94-96 | 94-96 | ||
| TRUCK, VAN, SUV | Isuzu | 2.6L / 2559 SOHC L4 8V 4ZE1 92.60mm Bore 88-97 | 88-97 |
