Product Description

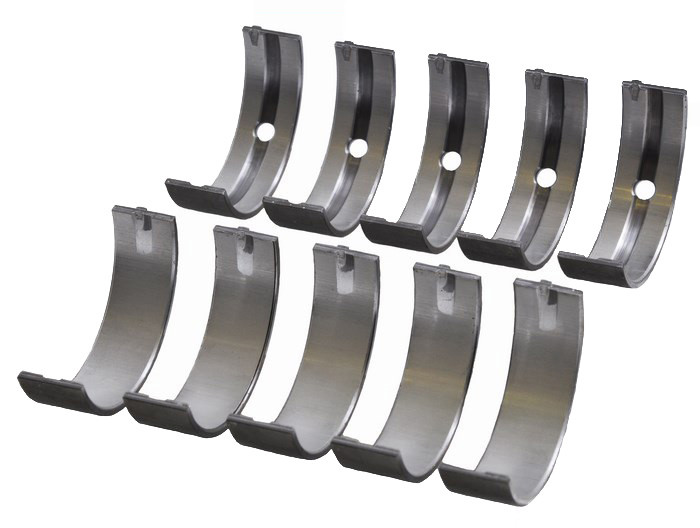

Main Bearing Set - Toyota 1.5L 3E 3EE 5EFE - Enginetech BC1424
Bearing Set - Main - BC1424
| Details | Value |
|---|---|
| Part number | BC1424 |
| Sizes available | STD, .25, .50 |
Dimensions
| Attribute | Value |
|---|---|
| Shell P/N | M1-1424-L |
| Position | 1-2-3-4-5 |
| Shaft Diameter | 1.9679-1.9685" |
| Housing Bore | 2.1267-2.1275" |
| Wall Thickness | 0.0781-0.0787" |
| Width | 0.630" |
| Oil Clearance | 0.0007-0.0033" |
| Sizes | N/A |
| Attribute | Value |
|---|---|
| Shell P/N | M1-1424-U |
| Position | 1-2-3-4-5 |
| Shaft Diameter | 1.9679-1.9685" |
| Housing Bore | 2.1267-2.1275" |
| Wall Thickness | 0.0781-0.0787" |
| Width | 0.630" |
| Oil Clearance | 0.0007-0.0033" |
| Sizes | N/A |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 2x4x10" |
| Weight | 0.5 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| ACL | 5M8382 |
| Beck/Arnley | 014-6455 |
| Clevite | MS-1953A |
| DNJ | MB903 |
| FEL-PRO | 7116M |
| ITM | 5M9411 |
| King Engine Bearings | MB5564AM |
| MAHLE | MS-1953AL |
| Safety Auto Parts Corp | BM15-078 |
| Topline | MBTO26 |
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| Car | Toyota | 1.5L / 1457 SOHC L4 12V 3E,3EE 73.00mm Bore 87-94 | 87-89 | 3E. | |
| Car | Toyota | 1.5L / 1457 SOHC L4 12V 3E,3EE 73.00mm Bore 87-94 | 90-94 | 3EE. | |
| Car | Toyota | 1.5L / 1497 DOHC L4 16V 5EFE 74.00mm Bore 92-98 | 92-98 |
