Product Description

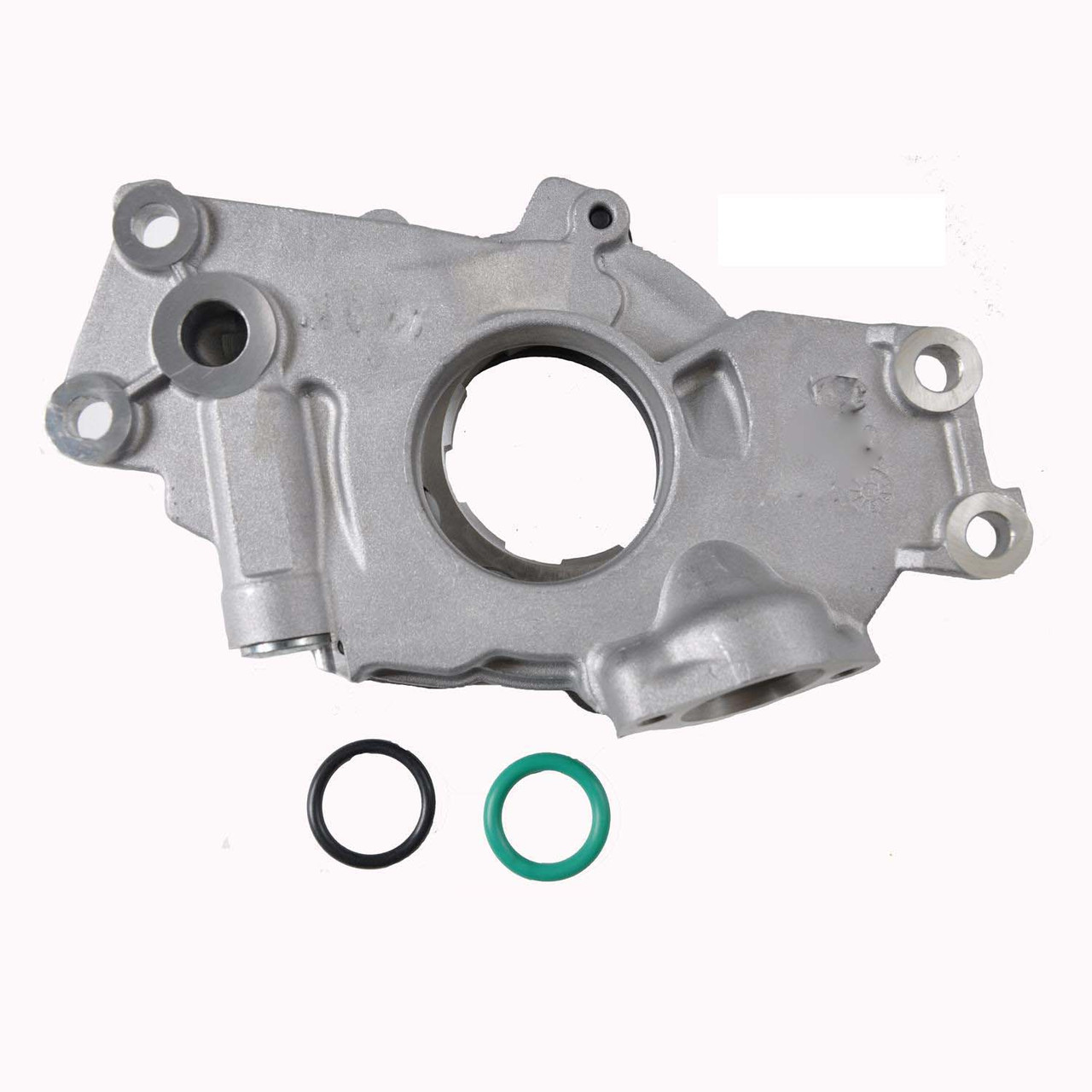

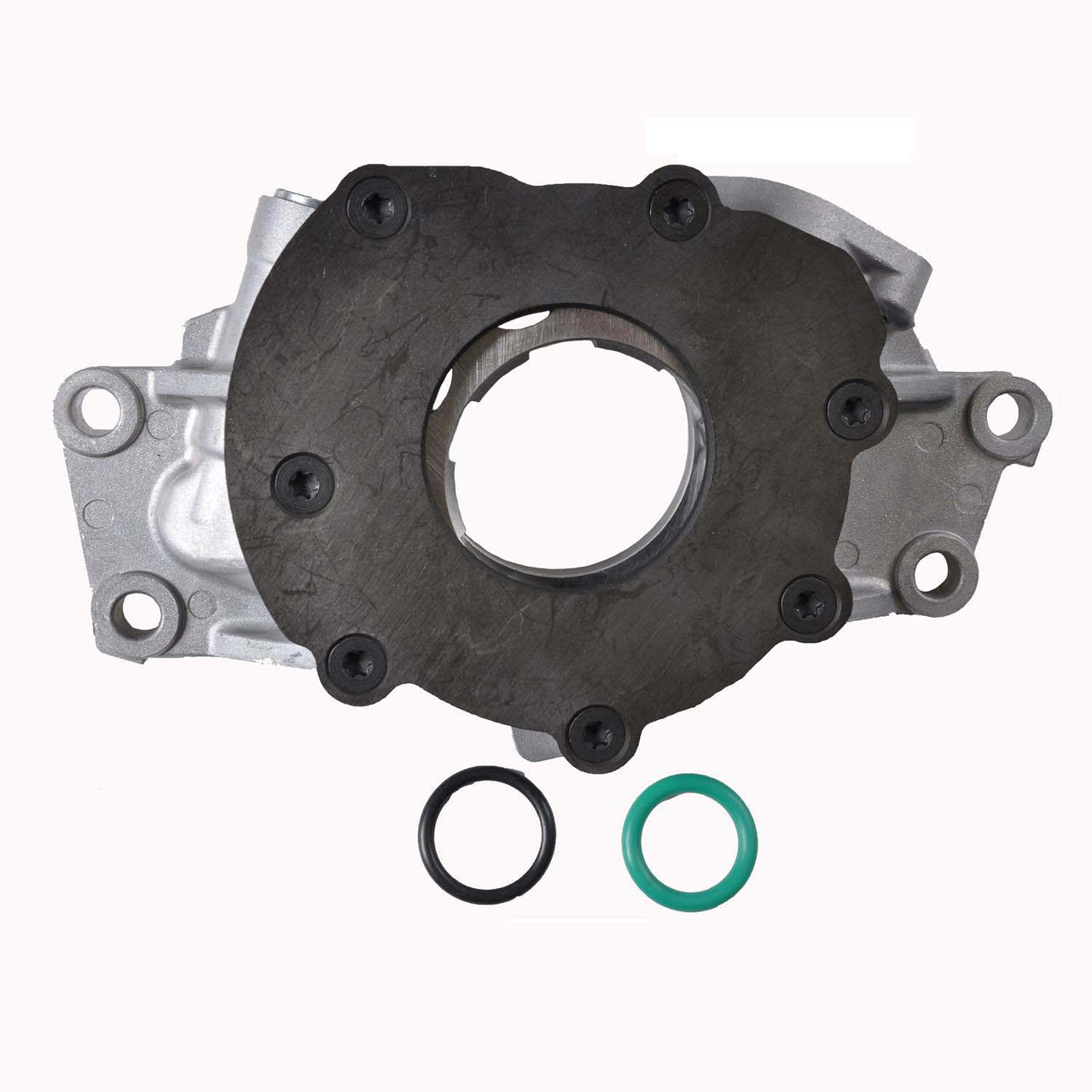

Oil Pump - EP295HV
| Details | Value |
|---|---|
| Part number | EP295HV |
| Sizes available | N/A |
Dimensions
| Attribute | Value |
|---|---|
| AttributeData | 0.375 |
| CatalogColumn | Mounting Hole Diameter |
| Attribute | Value |
|---|---|
| AttributeData | 0.875 |
| CatalogColumn | Pickup Screen Diameter |
| Attribute | Value |
|---|---|
| AttributeData | 18% |
| CatalogColumn | Additional Volume Over Stock Percentage |
| Attribute | Value |
|---|---|
| AttributeData | 4 |
| CatalogColumn | Mounting Hole Quantity |
| Attribute | Value |
|---|---|
| AttributeData | 4.660 |
| CatalogColumn | Height |
| Attribute | Value |
|---|---|
| AttributeData | 8.000 |
| CatalogColumn | Width |
| Attribute | Value |
|---|---|
| AttributeData | Cast Aluminum |
| CatalogColumn | Housing Material |
| Attribute | Value |
|---|---|
| AttributeData | Crankshaft |
| CatalogColumn | Drive Type |
| Attribute | Value |
|---|---|
| AttributeData | High Volume |
| CatalogColumn | Oil Pump Volume Type |
| Attribute | Value |
|---|---|
| AttributeData | Regular |
| CatalogColumn | Grade Type |
| Attribute | Value |
|---|---|
| AttributeData | Rotary |
| CatalogColumn | Oil Pump Type |
| Attribute | Value |
|---|---|
| AttributeData | Standard Pressure |
| CatalogColumn | Oil Pump Pressure Type |
| Attribute | Value |
|---|---|
| AttributeData | Yes |
| CatalogColumn | Gasket Or Seal Included |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 4x6x8" |
| Weight | 2.6 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| Melling | M295HV |
Product notes
Enginetech Oil Pumps
The oil pump is a critical component of the internal combustion engine. It's just as important as the heart is to the human body.
Enginetech can meet the Rebuilder's requirements for quality and performance with precision oil pumps, screens shafts and kits, as well as offer all of the popular oil pump applications as well as many harder to find applications. Enginetech oil pumps are designed to meet or exceed O.E.M. performance with the correct flow and maximum pressure control for each application.
Enginetech oil pumps, screens and shafts offer the rebuilder these advantages:
All oil pumps are 100% cycle tested for both volume and pressure. This assures OEM performance every time.
Oil pumps are part of Enginetech's complete engine products program. One phone call gets all your parts needs and reduces "parts chasing."
Availability from Enginetech's multi-warehouse distribution system. This provides same-day or next-day availability to virtually anywhere in the U.S.
Enginetech's precision oil pumps are supported by Enginetech's in-house engineering staff, who provide immediate answers to technical questions.
Oil Pumps are now part of Enginetech's kit program. This simplifies and reduces cost of parts purchases.
Quality & reliability
Enginetech's precision manufactured oil pumps, screens, shafts and kits are manufactured with the quality and reliability that precision engine builders require.
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| Car | GM | 5.7L / 346 OHV V8 16V LS Series "G,S" Chev. 99.00mm Bore 97-05 | 97-04 | High volume. See TB 2917 bulletin. | |
| Car | GM | 6.0L / 364 OHV V8 16V LS Series Vortec GM 4.000" Bore 05-17 | 05-07 | High volume. See TB 2917 bulletin. | |
| Car | GM | 6.2L / 376 OHV V8 16V LS Series Vortec Naturally Asp. 4.065" Bore 08-17 | 08-13 | Engine VIN code W. Corvette. High volume. | |
| Car | GM | 6.2L / 376 OHV V8 16V LS Series Vortec Naturally Asp. 4.065" Bore 08-17 | 10-12 | Engine VIN code J,W. Camaro. With manual transmission. High volume. | |
| Car | GM | 6.2L / 376 OHV V8 16V LS Series Vortec Naturally Asp. 4.065" Bore 08-17 | 13-16 | Engine VIN code W. Camaro & SS. High volume. | |
| HIGH PERFORMANCE | GM | 5.7L / 346 OHV V8 16V Chev. LS Gen III 99.00mm Bore 97-05 | 97-05 | High volume. See TB 2917 bulletin. | |
| TRUCK, VAN, SUV | GM, CHEVROLET | 4.8L / 293 OHV V8 16V GM 3.780" Bore 99-17 | 99-16 | High volume. See TB 2917 bulletin. | |
| TRUCK, VAN, SUV | GM, CHEVROLET | 5.3L / 325 OHV V8 16V LS Series Vortec GM 3.780" Bore 99-14 | 99-12 | Engine VIN code 0,4,J,L,P,T,Z. High volume. The OE pump has no cast hole in-between the mounting bolt holes. | |
| TRUCK, VAN, SUV | GM, CHEVROLET | 5.3L / 325 OHV V8 16V LS Series Vortec GM 3.780" Bore 99-14 | 13-16 | Engine VIN code 0,4. High Volume. The OE pump has no cast hole in-between the mounting bolt holes. | |
| TRUCK, VAN, SUV | GM, CHEVROLET | 6.0L / 364 OHV V8 16V LS Series Vortec GM 4.000" Bore 99-20 | 99-18 | Engine VIN code B,G,K,N,U. Iron engine block. High volume. | |
| TRUCK, VAN, SUV | GM, CHEVROLET | 6.0L / 364 OHV V8 16V LS Series Vortec GM 4.000" Bore 05-17 | 05-07 | High volume. See TB 2917 bulletin. | |
| TRUCK, VAN, SUV | GM, CHEVROLET | 6.0L / 364 OHV V8 16V LS Series Vortec GM 4.000" Bore 99-20 | 05-09 | Engine VIN code H. Aluminum engine block. High volume. | |
| TRUCK, VAN, SUV | GM, CHEVROLET | 6.0L / 364 OHV V8 16V LS Series Vortec GM 4.000" Bore 99-20 | 07-09 | Engine VIN code Y. Except Avalanche. Aluminum engine block. High volume. See TB 2917 bulletin. | |
| TRUCK, VAN, SUV | Hummer | 5.3L / 325 OHV V8 "L,P" GM 95.94mm Bore 08-10 | 08-09 | Engine VIN code L. High volume. | |
| TRUCK, VAN, SUV | Hummer | 6.0L / 364 OHV V8 "U" GM 4.000" Bore 03-07 | 03-07 | High volume. See TB 2917 bulletin. | |
| TRUCK, VAN, SUV | Isuzu | 5.3L / 5328 OHV V8 16V "P,M" GM 96.00mm Bore 03-06 | 03-04 | Engine VIN code P. High volume. The OE oil pump has no cast hole in-between the mounting bolt holes. | |
| TRUCK, VAN, SUV | Isuzu | 6.0L / 5967 OHV V8 16V "G,N,U" Vortec GM 101.60mm Bore 03-20 | 03-12 | High volume. See TB 2917 bulletin. | |
| TRUCK, VAN, SUV | Saab | 6.0L / 5967 OHV V8 16V "H" GM 101.6mm Bore 08-09 | 08-09 | High volume. See TB 2917 bulletin. |
