Product Description

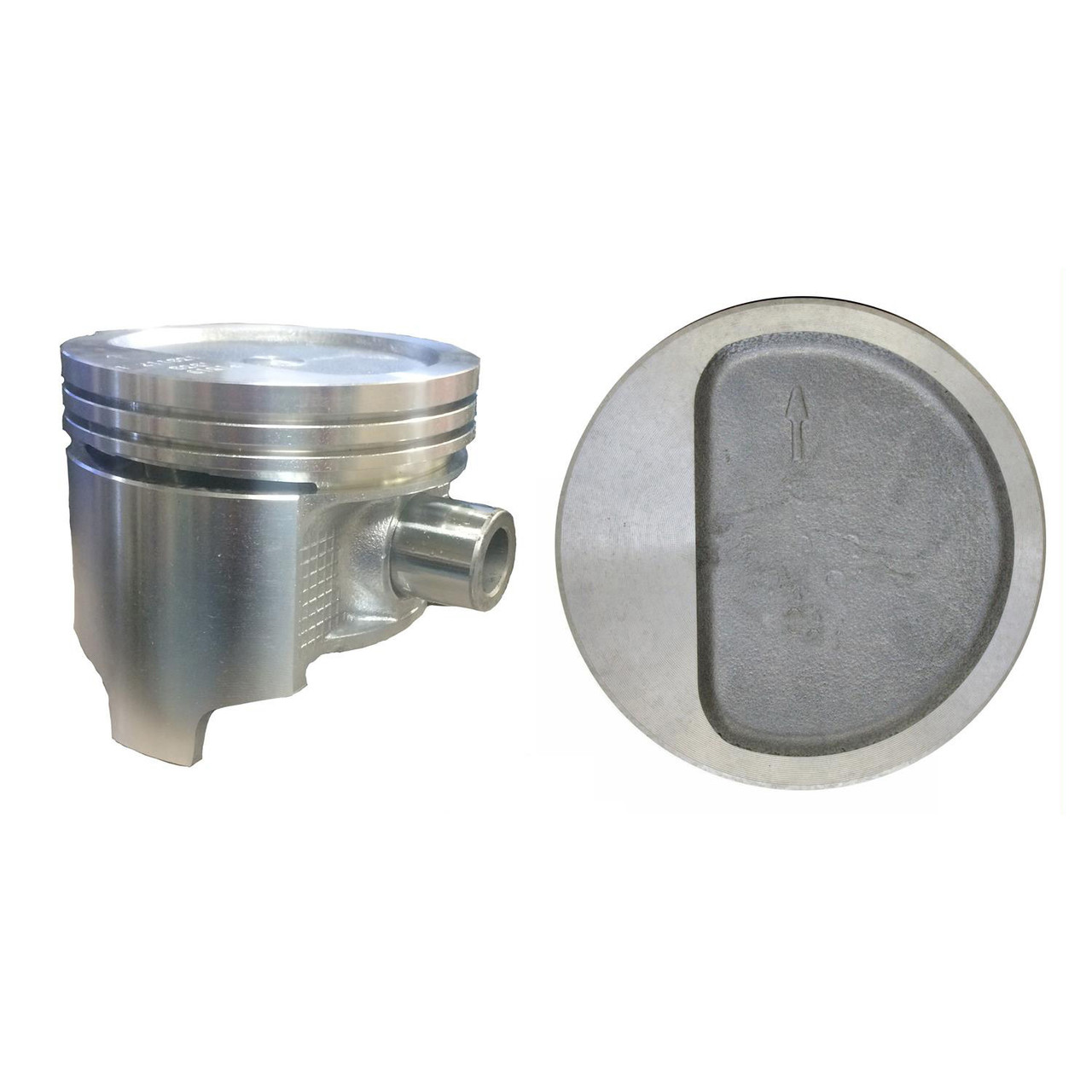

Piston Set - P1519(6)
| Details | Value |
|---|---|
| Part number | P1519(6) |
| Sizes available | STD, 030, 040, 060 |
Dimensions
| Attribute | Value |
|---|---|
| AttributeData | 0.9310 |
| CatalogColumn | Pin Dia. |
| Attribute | Value |
|---|---|
| AttributeData | 1.581 |
| CatalogColumn | Comp. Ht |
| Attribute | Value |
|---|---|
| AttributeData | 3.750 |
| CatalogColumn | Bore Inch |
| Attribute | Value |
|---|---|
| AttributeData | 3/16 |
| CatalogColumn | Oil Ring |
| Attribute | Value |
|---|---|
| AttributeData | 5/64 |
| CatalogColumn | 2nd Ring |
| Attribute | Value |
|---|---|
| AttributeData | 5/64 |
| CatalogColumn | Top Ring |
| Attribute | Value |
|---|---|
| AttributeData | 95.25 |
| CatalogColumn | Bore_mm |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 3.75x9.25x13.75" |
| Weight | 9.75 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| Silvolite | 2226 |
Product notes
Enginetech Pistons
Enginetech pistons have superior size and weight grading within each set.
Most Enginetech pistons are decked 0.010 to 0.020 to compensate for oversized bores and head/deck milling.
Enginetech pistons are manufactured with state of the art materials to match OE requirements. We offer cast aluminum, hypereutectic, and forged applications. Treatments such as skirt coatings, anodized heads & Ni-resist inserts are used as required.
Superior quality
Enginetech specializes in providing high performance engine pistons for engine rebuilds for domestic, import, and high performance application.
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| Car | AMC | 3.8L / 232 OHV L6 12V 3.750" Bore 64-79 | 64-79 | "D" shaped dish top .120" deep. 1.581" CH. Use R37556 rings. | |
| Car | AMC | 4.2L / 258 OHV L6 12V 3.750" Bore 71-88 | 71-78 | "D" shaped dish top .120" deep. 1.581" CH. Use R37556 rings. | |
| TRUCK, VAN, SUV | International | 3.8L / 232 OHV L6 AMC 3.750" Bore 69-72 | 69-71 | "D" shaped dish top .120" deep. 1.581" CH. Use R37556 rings. | |
| TRUCK, VAN, SUV | International | 4.2L / 258 OHV L6 AMC 3.750" Bore 72-74 | 72-74 | "D" shaped dish top .120" deep. 1.581" CH. Use R37556 rings. | |
| TRUCK, VAN, SUV | Jeep | 3.8L / 232 OHV L6 12V 3.750" Bore 65-78 | 65-78 | "D" shaped dish top .120" deep. 1.581" CH. Use R37556 rings. | |
| TRUCK, VAN, SUV | Jeep | 4.2L / 258 OHV L6 12V 3.750" Bore 71-90 | 71-78 | D shaped dish top .120" deep. 1.581" CH. Use R37556 rings. |
