Product Description

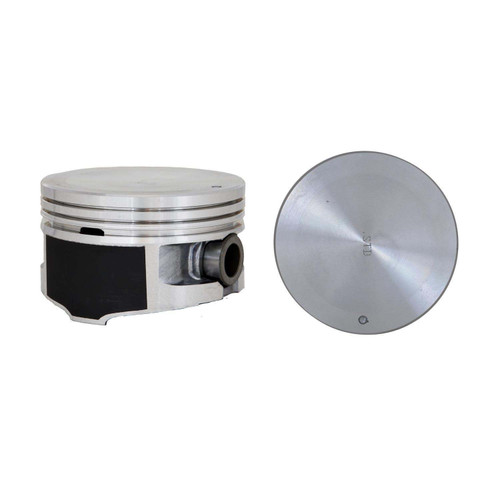

Piston Set - P5088(8)
| Details | Value |
|---|---|
| Part number | P5088(8) |
| Sizes available | STD, .50 |
Dimensions
| Attribute | Value |
|---|---|
| AttributeData | 0.8660 |
| CatalogColumn | Pin Dia. |
| Attribute | Value |
|---|---|
| AttributeData | 1.215 |
| CatalogColumn | Comp. Ht |
| Attribute | Value |
|---|---|
| AttributeData | 1.50 |
| CatalogColumn | 2nd Ring |
| Attribute | Value |
|---|---|
| AttributeData | 1.50 |
| CatalogColumn | Top Ring |
| Attribute | Value |
|---|---|
| AttributeData | 3.00 |
| CatalogColumn | Oil Ring |
| Attribute | Value |
|---|---|
| AttributeData | 3.551 |
| CatalogColumn | Bore Inch |
| Attribute | Value |
|---|---|
| AttributeData | 90.20 |
| CatalogColumn | Bore_mm |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 4.5x9.25x18.25" |
| Weight | 9.5 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| DNJ | P4131 |
| FEL-PRO | H614CP |
| Silvolite | 3179HC |
Product notes
Enginetech Pistons
Enginetech pistons have superior size and weight grading within each set.
Most Enginetech pistons are decked 0.010 to 0.020 to compensate for oversized bores and head/deck milling.
Enginetech pistons are manufactured with state of the art materials to match OE requirements. We offer cast aluminum, hypereutectic, and forged applications. Treatments such as skirt coatings, anodized heads & Ni-resist inserts are used as required.
Superior quality
Enginetech specializes in providing high performance engine pistons for engine rebuilds for domestic, import, and high performance application.
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| Car | FORD | 4.6L / 281 DOHC V8 32V "R,V" Nat. Asp. 90.20mm Bore 93-04 | 93-97 | Dish top. 1.215" CH. Hyper. Coated skirt. Floating pin. Use S90228 rings. | |
| Car | FORD | 4.6L / 281 DOHC V8 32V "R,V" Nat. Asp. 90.20mm Bore 93-04 | 98-98 | MK VIII. Dish top. 1.215" CH. Hyper. Coated skirt. Floating pin. Use S90228 rings. |
