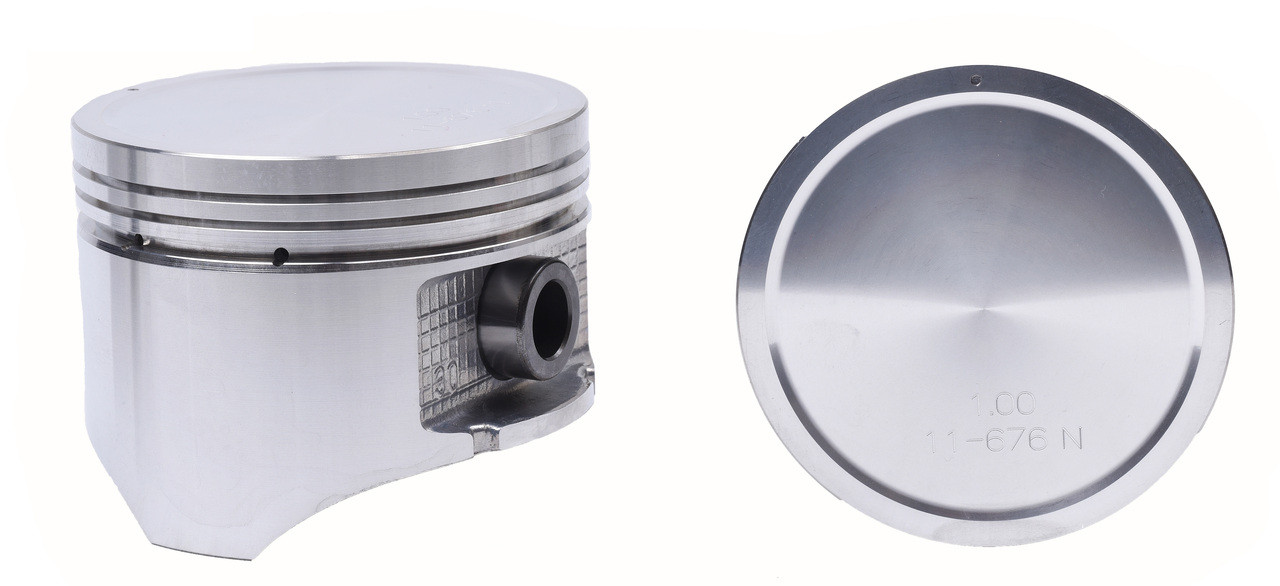

__47198.1787280088.jpg?c=2 "Piston Set (Qty. 4) - Nissan 2.4L KA24E Truck - Enginetech P4676(4)")
__47198.1787280088.jpg?c=2 "Piston Set (Qty. 4) - Nissan 2.4L KA24E Truck - Enginetech P4676(4)")
Product Description
Piston Set - P4676(4)
| Details | Value |
|---|---|
| Part number | P4676(4) |
| Sizes available | STD, .50, 100 |
Dimensions
| Attribute | Value |
|---|---|
| AttributeData | 0.8270 |
| CatalogColumn | Pin Dia. |
| Attribute | Value |
|---|---|
| AttributeData | 1.339 |
| CatalogColumn | Comp. Ht |
| Attribute | Value |
|---|---|
| AttributeData | 1.50 |
| CatalogColumn | 2nd Ring |
| Attribute | Value |
|---|---|
| AttributeData | 1.50 |
| CatalogColumn | Top Ring |
| Attribute | Value |
|---|---|
| AttributeData | 2.80 |
| CatalogColumn | Oil Ring |
| Attribute | Value |
|---|---|
| AttributeData | 3.504 |
| CatalogColumn | Bore Inch |
| Attribute | Value |
|---|---|
| AttributeData | 89.00 |
| CatalogColumn | Bore_mm |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 4x9.25x9.25" |
| Weight | 5 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| Beck/Arnley | 012-5286 |
| DNJ | P610 |
| FEL-PRO | 13503P |
| ITM | RY6660 |
| Safety Auto Parts Corp | SP127 |
| Silvolite | 9116 |
| Topline | PAD28P |
Product notes
Enginetech Pistons
Enginetech pistons have superior size and weight grading within each set.
Most Enginetech pistons are decked 0.010 to 0.020 to compensate for oversized bores and head/deck milling.
Enginetech pistons are manufactured with state of the art materials to match OE requirements. We offer cast aluminum, hypereutectic, and forged applications. Treatments such as skirt coatings, anodized heads & Ni-resist inserts are used as required.
Superior quality
Enginetech specializes in providing high performance engine pistons for engine rebuilds for domestic, import, and high performance application.
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| TRUCK, VAN, SUV | Nissan | 2.4L / 2389 SOHC L4 12V KA24E 89.00mm Bore 90-97 | 90-97 | Dish top. 1.350" CH. Use C89174 rings. |
