Product Description
Details

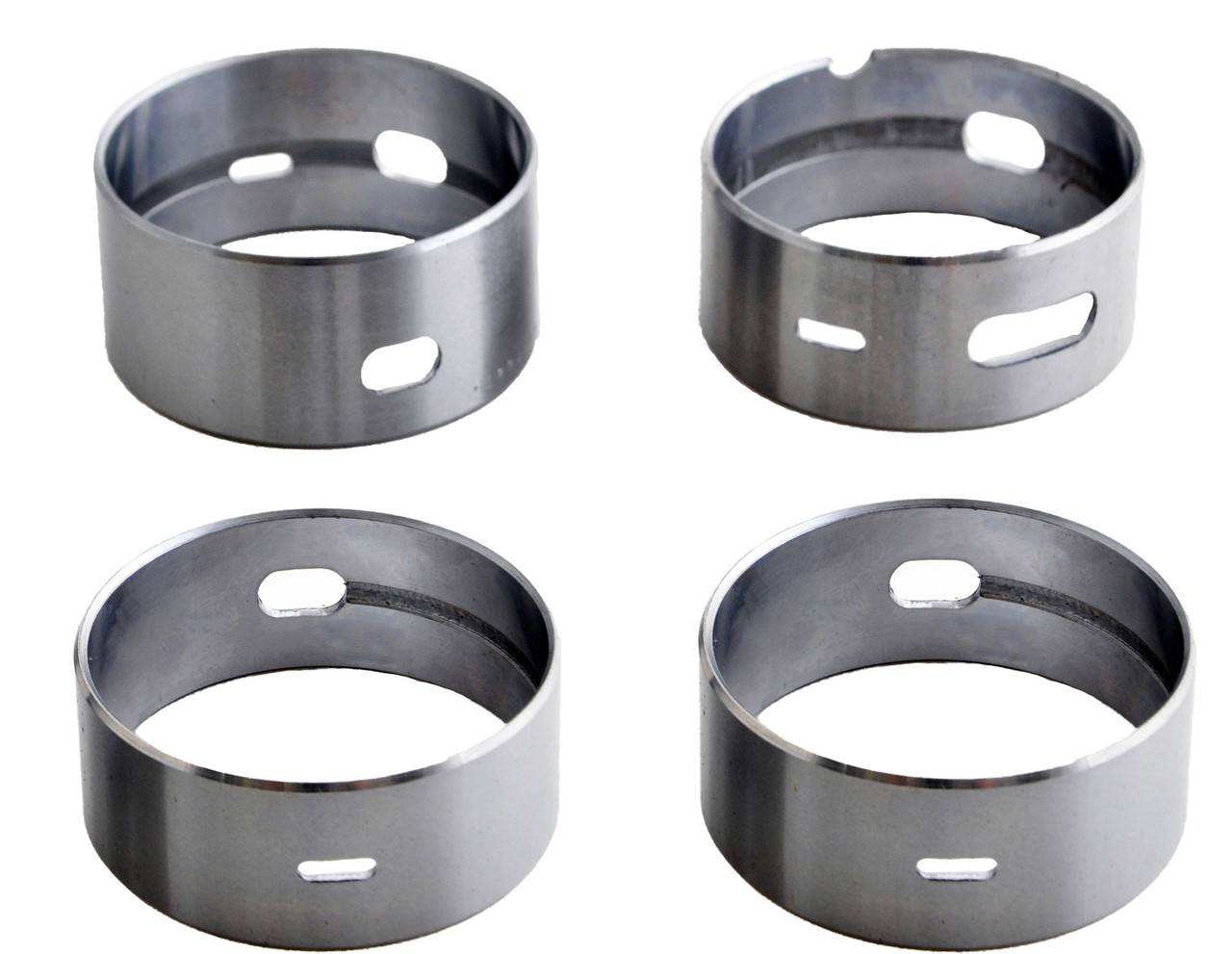

- Part Number : CC505
- Sizes Available: STD
Dimensions
- Shell P/NN/A
- Position1
- Shaft Diameter2.1537-2.1547"
- Housing Bore2.2840-2.2860"
- Wall Thickness0.0645"
- Width1.130"
- Oil Clearance0.0005-0.0050"
- SizesN/A
- Shell P/NN/A
- Position2
- Shaft Diameter2.0912-2.0922"
- Housing Bore2.2215-2.2235"
- Wall Thickness0.0645"
- Width0.950"
- Oil Clearance0.0005-0.0050"
- SizesN/A
- Shell P/NN/A
- Position3
- Shaft Diameter2.0287-2.0297"
- Housing Bore2.1590-2.1610"
- Wall Thickness0.0645"
- Width0.950"
- Oil Clearance0.0005-0.0050"
- SizesN/A
- Shell P/NN/A
- Position4
- Shaft Diameter1.9662-1.9672"
- Housing Bore2.0970-2.0980"
- Wall Thickness0.0645"
- Width0.947"
- Oil Clearance0.0005-0.0050"
- SizesN/A
Package Detail
- Package Size2.5x2x4.5"
- Weight0.5 lbs
ALso Fits:
| Category | Make | Model | User Engine | Year Range | Notes |
|---|---|---|---|---|---|
| Car | GM |  | 3.8L / 235 OHV L6 12V Chev. 3.5625" Bore 50-62 | 54-54 | With 2.154" 1st cam journal diameter. |
| Car | GM | | 3.8L / 235 OHV L6 12V Chev. 3.5625" Bore 50-62 | 55-62 | |
| TRUCK, VAN, SUV | GM, CHEVROLET | | 3.8L / 235 OHV L6 12V Chev. 3.5625" Bore 42-63 | 54-62 |
Interchange Numbers:
- Clemex SH383S
- ACL 4C383S-00
- FEL-PRO 1170M
- Dura-Bond Bearing CH-3
- King Engine Bearings CS434BB
- MAHLE SH-383S
