Product Description

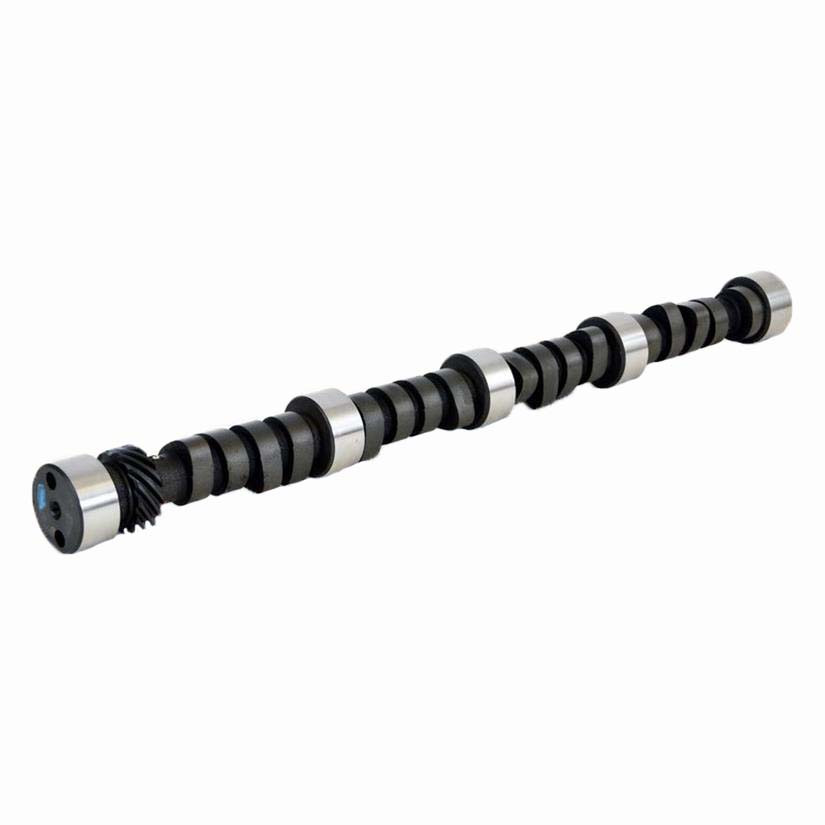

Camshaft - Stock - ES1522
| Details | Value |
|---|---|
| Part number | ES1522 |
| Sizes available | N/A |
Dimensions
| Attribute | Value |
|---|---|
| AttributeData | .247 |
| CatalogColumn | Cam Lift Int.'' |
| Attribute | Value |
|---|---|
| AttributeData | .252 |
| CatalogColumn | Cam Lift Exh.'' |
| Attribute | Value |
|---|---|
| AttributeData | .421 |
| CatalogColumn | Valve Lift Int.'' |
| Attribute | Value |
|---|---|
| AttributeData | .429 |
| CatalogColumn | Valve Lift Exh.'' |
| Attribute | Value |
|---|---|
| AttributeData | 114 |
| CatalogColumn | C/L Exh |
| Attribute | Value |
|---|---|
| AttributeData | 114 |
| CatalogColumn | C/L Int |
| Attribute | Value |
|---|---|
| AttributeData | 200 |
| CatalogColumn | .050'' Dur. Int. |
| Attribute | Value |
|---|---|
| AttributeData | 206 |
| CatalogColumn | .050'' Dur. Exh. |
| Attribute | Value |
|---|---|
| AttributeData | Hyd. |
| CatalogColumn | Lash Exh.'' |
| Attribute | Value |
|---|---|
| AttributeData | Hyd. |
| CatalogColumn | Lash Int.'' |
| Attribute | Value |
|---|---|
| AttributeData | Hyd. |
| CatalogColumn | Sleeve Type |
| Attribute | Value |
|---|---|
| AttributeData | s |
| CatalogColumn | Stage |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 2x2x23.25" |
| Weight | 10.25 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| Elgin | E-1689-S |
| FEL-PRO | CS-1522 |
| MAHLE | 229-2259 |
| Melling | MC1291 |
Product notes
Camshaft Break-in Additive
Cam-Shield with ZDDP
(Zinc Di-Alkyl-Dithio-Phosphate)
Anti-wear chemistry is required in all engine oils to protect valve train components and other metal surfaces from wearing. Todays passenger car engine oils do not contain enough ZDDP for proper engine protection during the break-in process.
Enginetechs ZDDP provides the additional protection that your remanufactured engine needs. Enginetechs ZDDP is super concentrated so that only a small amount is needed to treat your oil for new cam break-in.
Enginetechs ZDDP is THE premium concentrated (Zinc) anti-wear engine oil additive. Our specially formulated product is specifically designed to protect:
Camshafts
Valve Train Component
Piston Ring & Cylinder Liner Contact Area (lifters, followers, pushrods, rockers, lifter bores) from premature wear caused by todays oils.
Cam-Shield Paste Premium Molybdnum Disulfide
Camshaft Assembly Paste
Enriched with Cam-shield® Premium ZDDP Anti-wear Technology
Cam-Shield® brand premium Molybdenum Disulfide Camshaft Assembly Past provides fortified anti-wear protection for new camshafts during initial break-in.
Cam-shield® Premium ZDDP concentration of 2500 parts per million (ppm) of Zink (the optimum ZDDP concentration for break-in).
Use with all mechanical and hydraulic camshafts and lifters.
Initiates proper cam break-in.
Prevents galling.
Excellent for racing, pro-street, street, classic, agricultural, diesel and marine camshafts.
Available in 3 sizes to meet the needs of all customers and businesses.
5/8-oz. Lube Pack
Treats one typical 8-cylinder engine camshaft and lifters.
Single 5/8-oz. Lube Pack
50 pack case
4-oz. Brush Top Jar
Treats up to 6 typical 8-cylinder engine camshafts and lifters.
4-oz. brush top jar
12 jar case
1-lb. Tub
Treats up to twenty-four (24) typical 8-cylinder engine camshafts and lifters.
1-lb. tub
12 tub case
Treat break-in oil with Cam-shield® Premium ZDDP Anti-wear oil treatment.
Protect your racing engine from wear!
Keep your engine's power level up!
Get more races from your motor before rebuild time!
Strongest Concentration!
Best Technology!
Best Value!
Cam-Shield® The Performance Advantage!
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| TRUCK, VAN, SUV | GM, CHEVROLET | 7.4L / 454 OHV V8 16V Chev. 4.250" Bore 71-00 | 94-97 | Engine VIN code N. Use flat followers. |
