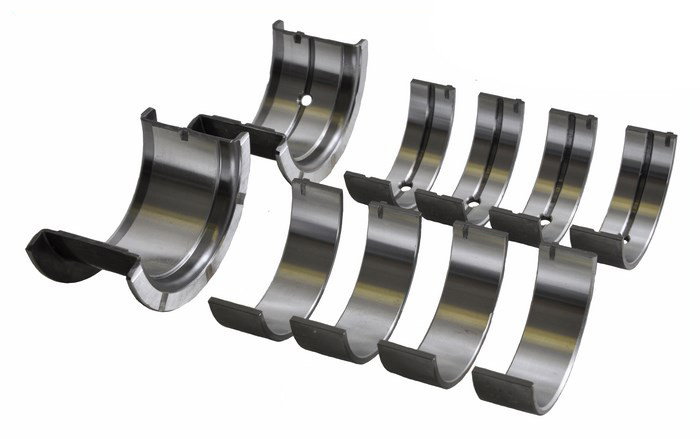

  • 1967-2002 GM 6.3L 383ci OHV V8 16V Chevrolet Small Block Stroker 4.000" Bore Main Bearing Set BC424J -EP9

    • 1967-2002 GM 6.3L 383ci OHV V8 16V Chevrolet Small Block Stroker 4.000" Bore Main Bearing Set BC424J -EP9

    Engine Tech

    $52.97
    Write a Review
    SKU:
    BC424J -EP9
    Availability:
    In Stock
    Adding to cart… category.add_cart_announcement

    Product Description

    Details

    • Part Number : BC424J
    • Sizes Available: 010, 020, 030
    • Weight : 1.50(lbs)

    Dimensions

      • Shell P/NM557U
      • Position1-2-3-4
      • Shaft Diameter2.4483-2.4493"
      • Housing Bore2.6406-2.6416"
      • Wall Thickness0.0950-0.0955"
      • Width0.802"
      • Oil Clearance0.0008-0.0033"
      • SizesN/A
      • Shell P/NM557L
      • Position1-2-3-4
      • Shaft Diameter2.4483-2.4493"
      • Housing Bore2.6406-2.6416"
      • Wall Thickness0.0950-0.0955"
      • Width0.802"
      • Oil Clearance0.0008-0.0033"
      • SizesN/A
      • Shell P/NF5183U/L
      • Position5
      • Shaft Diameter2.4478-2.4488"
      • Housing Bore2.6406-2.6416"
      • Wall Thickness0.0950-0.0955"
      • Width1.727"
      • Oil Clearance0.0008-0.0038"
      • SizesN/A

    Package Detail

    • Package Size7x2.5x3.5"
    • Weight1.25 lbs



    ALso Fits:

    CategoryMakeModelUser EngineYear RangeNotes
    CarGM 4.3L / 262 OHV V8 16V "G" Chev. 3.671" Bore 75-7675-76 0.010" oversized flange width.
    CarGM 4.3L / 265 OHV V8 16V "W" Chev. 94.89mm Bore 94-9694-96 0.010" oversized flange width.
    CarGM 4.4L / 267 OHV V8 16V "J" Chev. 3.500" Bore 79-8279-82 0.010" oversized flange width.
    CarGM 4.9L / 302 OHV V8 16V Chev 4.000" Bore 67-6967-69 0.010" oversized flange width.
    CarGM 5.0L / 307 OHV V8 16V Chev. 3.875" Bore 68-7368-73 0.010" oversized flange width.
    CarGM 5.0L / 305 OHV V8 16V Chev. 3.736" Bore 76-9376-93 0.010" oversized flange width.
    CarGM 5.4L / 327 OHV V8 16V Chev. 4.000" Bore 62-6968-69 0.010" oversized flange width.
    CarGM 5.7L / 350 OHV V8 16V Chev. 4.000" Bore 67-9767-97 0.010" oversized flange width.
    HIGH PERFORMANCEGM 6.3L / 383 OHV V8 16V Chev. Small Block Stroker 4.000" Bore 67-02High Perf. Stock. 0.010" oversized flange width.
    MARINEGM 5.0L / 305 OHV V8 16V Chev. Small Block 3.736" BoreHigh Perf. 0.010" oversized flange width.
    MARINEGM 5.7L / 350 OHV V8 16V Chev. Gen I Small Block 4.000" BoreHigh Perf. 0.010" oversized flange width.
    TRUCK, VAN, SUVGM, CHEVROLET 4.4L / 267 OHV V8 16V "J" Chev. 3.500" Bore 79-8279-82 0.010" oversized flange width.
    TRUCK, VAN, SUVGM, CHEVROLET 5.0L / 307 OHV V8 16V Chev. 3.875" Bore 68-7368-73 0.010" oversized flange width.
    TRUCK, VAN, SUVGM, CHEVROLET 5.0L / 305 OHV V8 16V Chev. 3.736" Bore 76-0276-02 0.010" oversized flange width.
    TRUCK, VAN, SUVGM, CHEVROLET 5.4L / 327 OHV V8 16V Chev. 4.000" Bore 66-6868-68 0.010" oversized flange width.
    TRUCK, VAN, SUVGM, CHEVROLET 5.7L / 350 OHV V8 16V Chev. 4.000" Bore 68-0268-02 0.010" oversized flange width.





    Interchange Numbers:

    • Clemex MS1744P
    • ACL 5M1744P
    • Clevite MS-1744P
    • FEL-PRO 7329M10
    • King Engine Bearings MB5183AM
    • MAHLE MS-1744P-10

    Other Details

    12 Months / 12K Miles
