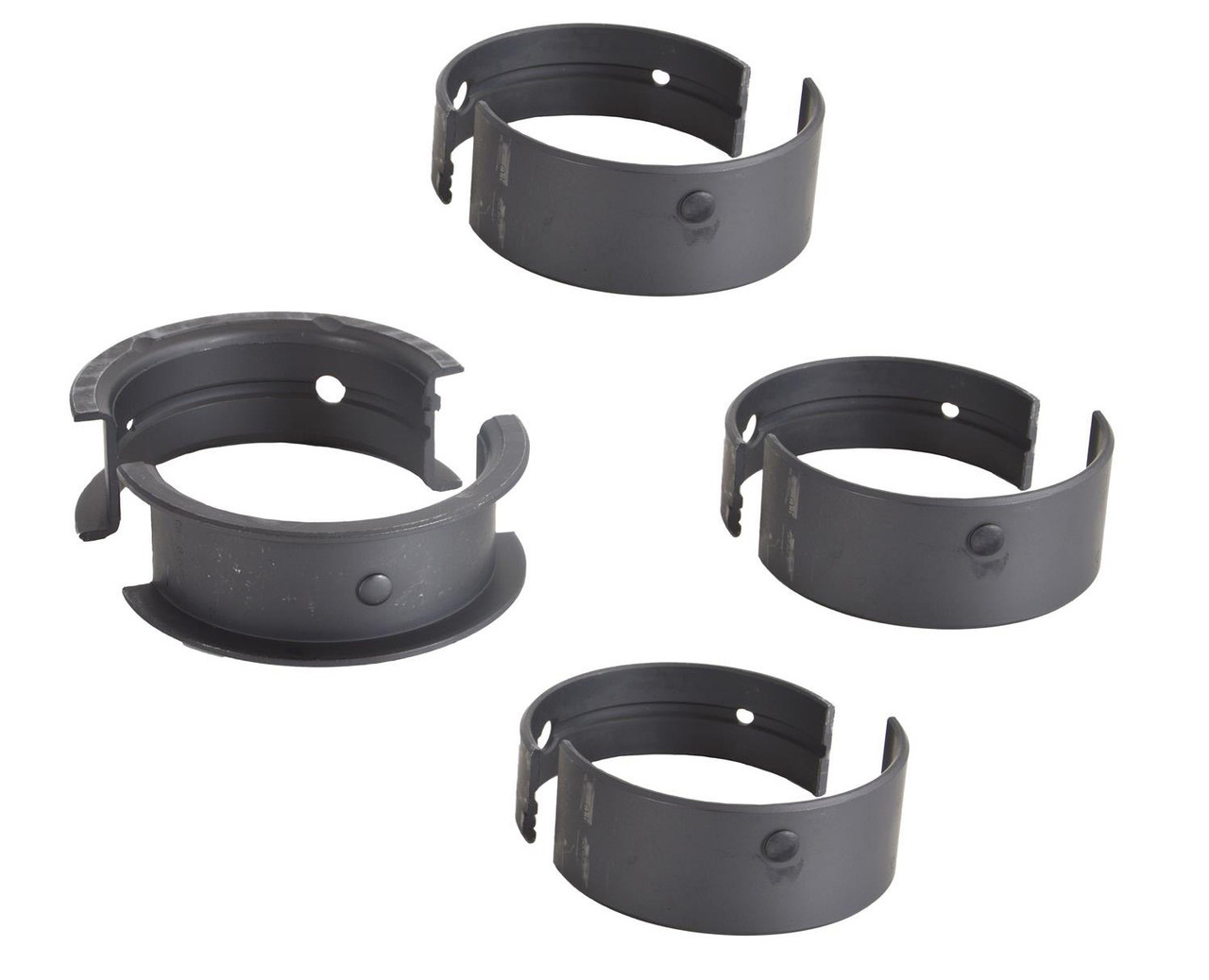

Product Description
Details
- Part Number : BC146J
- Sizes Available: 010, 020, 030
Dimensions
- Shell P/NN/A
- Position1
- Shaft Diameter2.6835-2.6845"
- Housing Bore2.8760-2.8775"
- Wall Thickness0.0950-0.0955"
- Width1.098"
- Oil Clearance0.0006-0.0036"
- SizesN/A
- Shell P/NN/A
- Position2
- Shaft Diameter2.7415-2.7155"
- Housing Bore2.9070-2.9085"
- Wall Thickness0.0950-0.0955"
- Width0.942"
- Oil Clearance0.0006-0.0036"
- SizesN/A
- Shell P/NN/A
- Position2
- Shaft Diameter2.7455-2.7465"
- Housing Bore2.9380-2.9395"
- Wall Thickness0.0950-0.0955"
- Width1.243"
- Oil Clearance0.0006-0.0036"
- SizesN/A
- Shell P/NN/A
- Position4
- Shaft Diameter2.7765-2.7775"
- Housing Bore2.9690-2.9705"
- Wall Thickness0.0950-0.0955"
- Width1.224"
- Oil Clearance0.0006-0.0036"
- SizesN/A
Package Detail
- Package Size7x2.5x3.5"
- Weight0.75 lbs
ALso Fits:
| Category | Make | Model | User Engine | Year Range | Notes |
|---|---|---|---|---|---|
| Car | GM |  | 3.8L / 235 OHV L6 12V Chev. 3.5625" Bore 50-62 | 55-62 | W/tang lock bearings. Use with a shim set (not included). |
| TRUCK, VAN, SUV | GM, CHEVROLET | | 3.8L / 235 OHV L6 12V Chev. 3.5625" Bore 42-63 | 55-62 | W/tang lock bearings. Use with a shim set (not included). |
| TRUCK, VAN, SUV | GM, CHEVROLET | | 4.3L / 261 OHV L6 12V Chev. 3.750" Bore 54-62 | 55-62 | W/tang lock bearings. |
Interchange Numbers:
- FEL-PRO 960M
- MAHLE MS-197P
