Product Description
Details

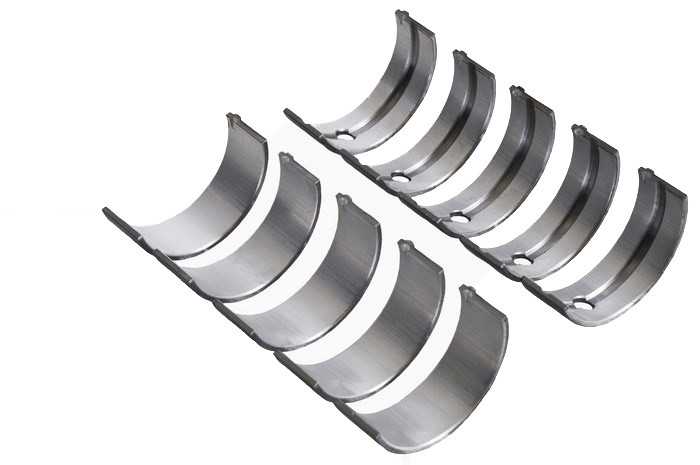

- Part Number : BC2404
- Sizes Available: STD, .25, .50
Dimensions
- Shell P/NM454U
- Position1-2-3-4-5
- Shaft Diameter1.7711-1.7716"
- Housing Bore1.9291-1.9300"
- Wall Thickness0.0785-.0.0790"
- Width0.709"
- Oil Clearance0.0009-0.0022"
- SizesN/A
- Shell P/NM454L
- Position1-2-3-4-5
- Shaft Diameter1.7711-1.7716"
- Housing Bore1.9291-1.9300"
- Wall Thickness0.0785-0.0790"
- Width0.709"
- Oil Clearance0.0009-0.0022"
- SizesN/A
Package Detail
- Package Size2x4x10"
- Weight0.75 lbs
ALso Fits:
| Category | Make | Model | User Engine | Year Range | Notes |
|---|---|---|---|---|---|
| Car | GM |  | 1.3L / 1298 SOHC L4 16V "2" Suz. 74.00m Bore 98-01 | 98-01 | |
| Car | Suzuki | | 1.3L / 1298 DOHC L4 16V G13K 74.00mm Bore 89-94 | 89-94 | |
| Car | Suzuki | | 1.3L / 1298 SOHC L4 8V G13BA 74.00mm Bore 89-97 | 89-97 | |
| Car | Suzuki | | 1.3L / 1298 SOHC L4 16V G13BB 74.00mm Bore 98-01 | 98-01 | |
| TRUCK, VAN, SUV | Suzuki | | 1.3L / 1324 SOHC L4 8V G13A 74.00mm Bore 86-89 | 86-89 | |
| TRUCK, VAN, SUV | Suzuki | | 1.3L / 1298 SOHC L4 8V G13BA 74.00mm Bore 90-95 | 90-95 |
