Product Description
Details

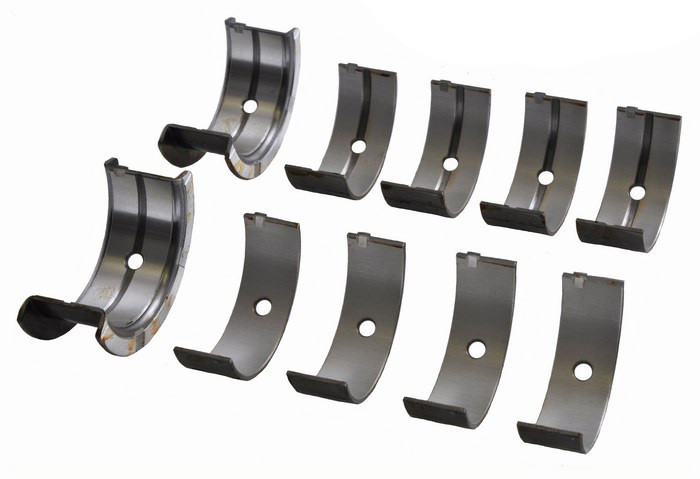

- Part Number : BC2174
- Sizes Available: STD, .25, .50
Dimensions
- Shell P/NM5524/1
- Position1-5
- Shaft Diameter1.9661-1.9673"
- Housing Bore2.1119-2.1129"
- Wall Thickness0.0715-0.0720"
- Width0.871"
- Oil Clearance0.0006-0.0036"
- SizesN/A
- Shell P/NM5524/2
- Position2-4
- Shaft Diameter1.9661-1.9673"
- Housing Bore2.1119-2.1129"
- Wall Thickness0.0715-0.0720"
- Width0.713"
- Oil Clearance0.0006-0.0036"
- SizesN/A
- Shell P/NF5230
- Position3
- Shaft Diameter1.9661-1.9673"
- Housing Bore2.1119-2.1129"
- Wall Thickness0.0715-0.0720"
- Width1.061"
- Oil Clearance0.0006-0.0036"
- SizesN/A
Package Detail
- Package Size7x2.5x3.5"
- Weight0.75 lbs
ALso Fits:
| Category | Make | Model | User Engine | Year Range | Notes |
|---|---|---|---|---|---|
| Car | Nissan |  | 1.5L / 1487 SOHC L4 8V E15/E15S Nat. Asp 76.00mm Bore 82-83 | 82-83 | Standard flange width all sizes. |
| Car | Nissan | | 1.5L / 1487 SOHC L4 8V E15T Turbo 76.00mm Bore 83-84 | 83-84 | Standard flange width all sizes. |
| Car | Nissan | | 1.6L / 1597 SOHC L4 8V E16 76.00mm Bore 83-86 | 83-86 | Standard flange width all sizes. |
| Car | Nissan | | 1.6L / 1597 SOHC L4 8V E16i,S 76.00mm Bore 86-88 | 86-88 | Standard flange width all sizes. |
