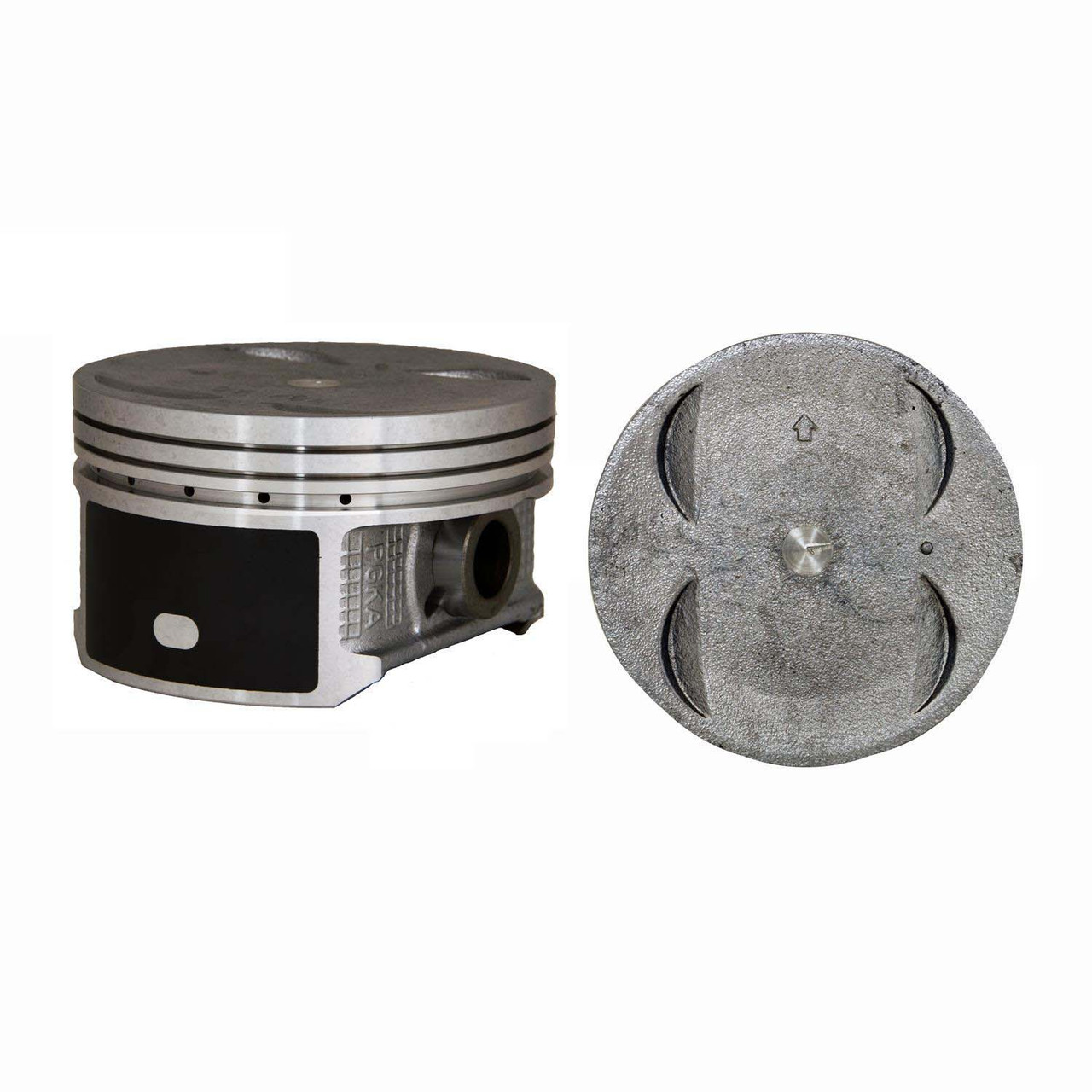

__69896__50361.1788054874.jpg?c=2 "2001-2002 Acura 3.5L 3471ci SOHC V6 24V J35A3 89.00mm Bore Piston Set P4836(6) -EP1")
__69896__50361.1788054874.jpg?c=2 "2001-2002 Acura 3.5L 3471ci SOHC V6 24V J35A3 89.00mm Bore Piston Set P4836(6) -EP1")
Product Description
Details
- Part Number : P4836(6)
- Sizes Available: STD, .50
Dimensions
- Pin Dia.0.8648
- Comp. Ht1.171
- 2nd Ring1.20
- Top Ring1.20
- Oil Ring2.80
- Bore Inch3.504
- Bore_mm89.00
Package Detail
- Package Size3.75x9.25x13.75"
- Weight6.5 lbs
ALso Fits:
| Category | Make | Model | User Engine | Year Range | Notes |
|---|---|---|---|---|---|
| TRUCK, VAN, SUV | Acura |  | 3.5L / 3471 SOHC V6 24V J35A3 89.00mm Bore 01-02 | 01-02 | Dish top .047" deep. 1.171" CH. Hyper. Coated skirt. Use S89416 rings. |
| TRUCK, VAN, SUV | Acura | | 3.5L / 3471 SOHC V6 24V J35A5 89.00mm Bore 03-06 | 03-04 | Dish top .047" deep. 1.171" CH. Hyper. Coated skirt. Use S89416 rings. |
| TRUCK, VAN, SUV | Honda | | 3.5L / 3471 SOHC V6 24V J35A4 89.00mm Bore 02-25 | 02-04 | Dish top .047" deep. 1.171" CH. Hyper. Coated skirt. Use S89416 rings. |
| TRUCK, VAN, SUV | Honda | | 3.5L / 3471 SOHC V6 24V J35A6 89.00mm Bore 05-10 | 05-10 | Dish top .047" deep. 1.171" CH. Hyper. Coated skirt. Use S89416 rings. |
| TRUCK, VAN, SUV | Saturn | | 3.5L / 3471 SOHC V6 24V "4" Honda 89.00mm Bore 04-07 | 04-07 | Dish top .047" deep. 1.171" CH. Hyper. Coated skirt. Use S89416 rings. |
Interchange Numbers:
- Topline PAH38Z
- Safety Auto Parts Corp SP22-105
- ITM RY6922
