Product Description

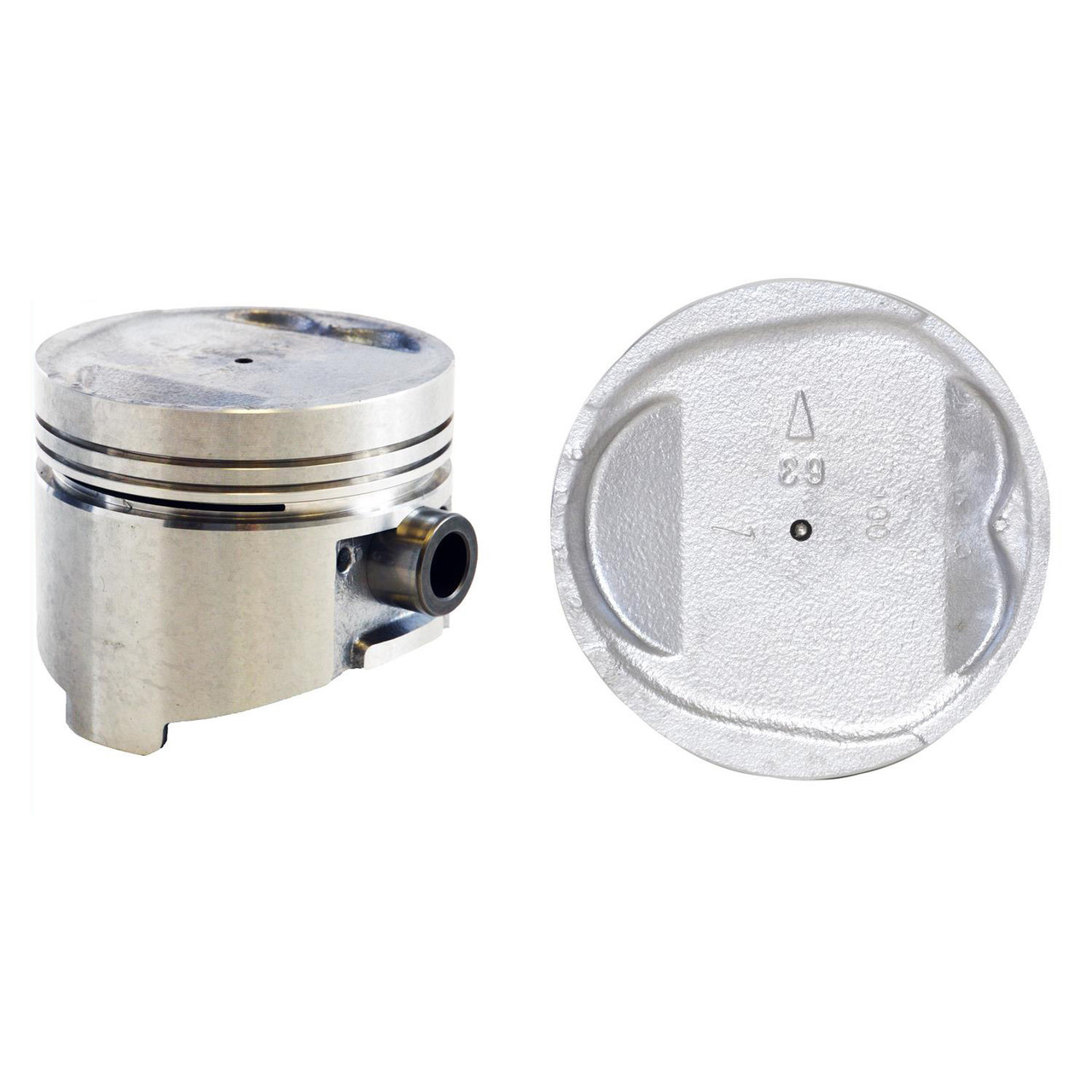

Piston Set - P4539(4)
| Details | Value |
|---|---|
| Part number | P4539(4) |
| Sizes available | STD, .50, 100 |
Dimensions
| Attribute | Value |
|---|---|
| AttributeData | 0.8270 |
| CatalogColumn | Pin Dia. |
| Attribute | Value |
|---|---|
| AttributeData | 1.378 |
| CatalogColumn | Comp. Ht |
| Attribute | Value |
|---|---|
| AttributeData | 1.50 |
| CatalogColumn | 2nd Ring |
| Attribute | Value |
|---|---|
| AttributeData | 1.50 |
| CatalogColumn | Top Ring |
| Attribute | Value |
|---|---|
| AttributeData | 3.346 |
| CatalogColumn | Bore Inch |
| Attribute | Value |
|---|---|
| AttributeData | 4.00 |
| CatalogColumn | Oil Ring |
| Attribute | Value |
|---|---|
| AttributeData | 85.00 |
| CatalogColumn | Bore_mm |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 3.75x9.25x13.75" |
| Weight | 5 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| Beck/Arnley | 012-5233 |
| DNJ | P106 |
| FEL-PRO | 13168P |
| ITM | RY6292 |
| Safety Auto Parts Corp | SP903 |
| Safety Auto Parts Corp | SP903A |
| Silvolite | 3217 |
| Topline | PAMI4L |
Product notes
Enginetech Pistons
Enginetech pistons have superior size and weight grading within each set.
Most Enginetech pistons are decked 0.010 to 0.020 to compensate for oversized bores and head/deck milling.
Enginetech pistons are manufactured with state of the art materials to match OE requirements. We offer cast aluminum, hypereutectic, and forged applications. Treatments such as skirt coatings, anodized heads & Ni-resist inserts are used as required.
Superior quality
Enginetech specializes in providing high performance engine pistons for engine rebuilds for domestic, import, and high performance application.
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| Car | CHRYSLER | 2.0L / 122 SOHC L4 8V "D,V" Mits. 85.00mm Bore 84-91 | 87-91 | Dish top. 1.378" CH. G63B. Use C85224 rings. | |
| Car | Mitsubishi | 2.0L / 1997 SOHC L4 8V "D,V" G63B,4G63 85.00mm Bore 84-92 | 89-92 | Dish top. 1.378" CH. G63B. Use C85224 rings. | |
| TRUCK, VAN, SUV | CHRYSLER, DODGE, RAM | 2.0L / 122 SOHC L4 8V "5,D" Mits. 85.00mm Bore 83-89 | 87-89 | Dish top. 1.378" CH. Use C85224 rings. | |
| TRUCK, VAN, SUV | Mitsubishi | 2.0L / 1997 SOHC L4 8V G63B 85.00mm Bore 83-89 | 87-89 | Dish top. 1.378" CH. Use C85224 rings. |
