Product Description

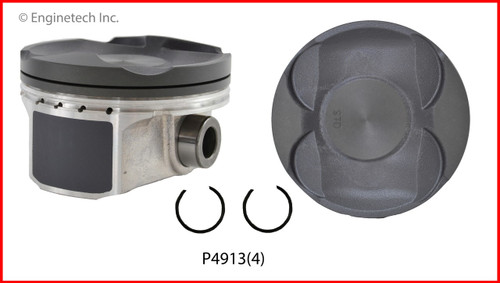

Piston Set - P4913(4)
| Details | Value |
|---|---|
| Part number | P4913(4) |
| Sizes available | STD, .50 |
Dimensions
| Attribute | Value |
|---|---|
| AttributeData | 0.8661 |
| CatalogColumn | Pin Dia. |
| Attribute | Value |
|---|---|
| AttributeData | 1.00 |
| CatalogColumn | 2nd Ring |
| Attribute | Value |
|---|---|
| AttributeData | 1.00 |
| CatalogColumn | Top Ring |
| Attribute | Value |
|---|---|
| AttributeData | 2.00 |
| CatalogColumn | Oil Ring |
| Attribute | Value |
|---|---|
| AttributeData | 3.543 |
| CatalogColumn | Bore Inch |
| Attribute | Value |
|---|---|
| AttributeData | 90.00 |
| CatalogColumn | Bore_mm |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 4x9.25x9.25" |
| Weight | 4.5 lbs |
Product notes
Enginetech Pistons
Enginetech pistons have superior size and weight grading within each set.
Most Enginetech pistons are decked 0.010 to 0.020 to compensate for oversized bores and head/deck milling.
Enginetech pistons are manufactured with state of the art materials to match OE requirements. We offer cast aluminum, hypereutectic, and forged applications. Treatments such as skirt coatings, anodized heads & Ni-resist inserts are used as required.
Superior quality
Enginetech specializes in providing high performance engine pistons for engine rebuilds for domestic, import, and high performance application.
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| Car | Scion | 2.5L / 2494 DOHC L4 16V 2ARFE 90.00mm Bore 11-16 | 11-15 | Tc. Anodized head. Coated skirt. Use S90004 rings. | |
| Car | Toyota | 2.5L / 2494 DOHC L4 16V 2ARFE 90.00mm Bore 10-17 | 10-15 | Camry. Anodized head. Coated skirt. Use S90004 rings. | |
| TRUCK, VAN, SUV | Toyota | 2.5L / 2494 DOHC L4 16V 2ARFE 90.00mm Bore 09-17 | 09-15 | Anodized head. Coated skirt. Use S90004 rings. |
