Product Description

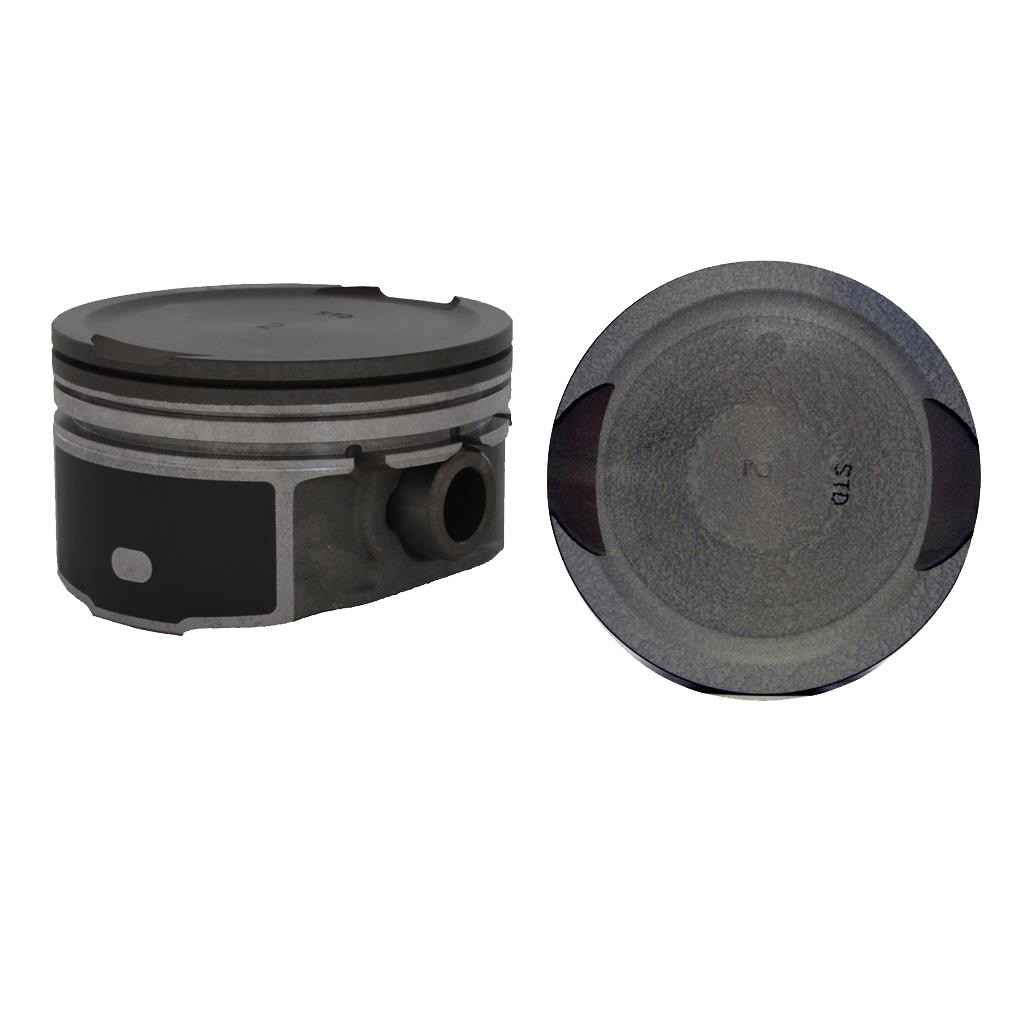

Piston Set - P5056(8)
| Details | Value |
|---|---|
| Part number | P5056(8) |
| Sizes available | STD, .50 |
Dimensions
| Attribute | Value |
|---|---|
| AttributeData | 0.6881 |
| CatalogColumn | Pin Dia. |
| Attribute | Value |
|---|---|
| AttributeData | 1.200 |
| CatalogColumn | Comp. Ht |
| Attribute | Value |
|---|---|
| AttributeData | 1.50 |
| CatalogColumn | 2nd Ring |
| Attribute | Value |
|---|---|
| AttributeData | 1.50 |
| CatalogColumn | Top Ring |
| Attribute | Value |
|---|---|
| AttributeData | 3.00 |
| CatalogColumn | Oil Ring |
| Attribute | Value |
|---|---|
| AttributeData | 3.551 |
| CatalogColumn | Bore Inch |
| Attribute | Value |
|---|---|
| AttributeData | 90.20 |
| CatalogColumn | Bore_mm |
Package detail
| Attribute | Value |
|---|---|
| Package Size | 4.5x9.25x18.25" |
| Weight | 9.25 lbs |
Competitive interchange
| Brand | Part number |
|---|---|
| FEL-PRO | H1135CT |
Product notes
Enginetech Pistons
Enginetech pistons have superior size and weight grading within each set.
Most Enginetech pistons are decked 0.010 to 0.020 to compensate for oversized bores and head/deck milling.
Enginetech pistons are manufactured with state of the art materials to match OE requirements. We offer cast aluminum, hypereutectic, and forged applications. Treatments such as skirt coatings, anodized heads & Ni-resist inserts are used as required.
Superior quality
Enginetech specializes in providing high performance engine pistons for engine rebuilds for domestic, import, and high performance application.
Also fits
| Category | Make | Model | User engine | Year range | Notes |
|---|---|---|---|---|---|
| Car | FORD | 4.6L / 281 SOHC V8 24V "H" 90.20mm Bore 05-10 | 05-10 | Dish top .051" deep. 1.200" CH. Anodized head. Coated skirt. Use S90228 rings. | |
| TRUCK, VAN, SUV | FORD | 4.6L / 281 SOHC V8 24V "8" 90.20mm Bore 06-10 | 06-10 | Dish top .051" deep. 1.200" CH. Anodized head. Coated skirt. Use S90228 rings. |
